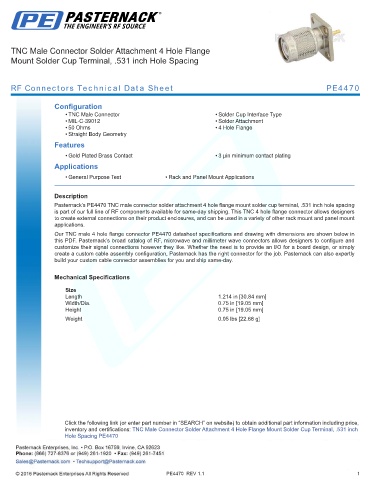

TNC Male Connector Solder Attachment 4 Hole Flange
Mount Solder Cup Terminal, .531 inch Hole Spacing

RF Connectors Technical Data Sheet PE4470

Configuration
• TNC Male Connector • Solder Cup Interface Type
• MIL-C-39012 • Solder Attachment
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Gold Plated Brass Contact • 3 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4470 TNC male connector solder attachment 4 hole flange mount solder cup terminal, .531 inch hole spacing
is part of our full line of RF components available for same-day shipping. This TNC 4 hole flange connector allows designers
to create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our TNC male 4 hole flange connector PE4470 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.214 in [30.84 mm]
Width/Dia. 0.75 in [19.05 mm]
Height 0.75 in [19.05 mm]
.
Weight 0.05 lbs [22.68 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, .531 inch
Hole Spacing PE4470

PE4470 REV 1.1 1
