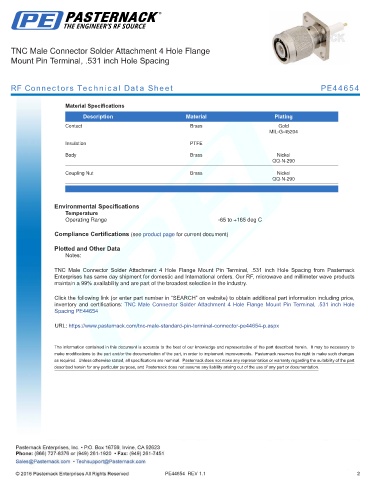

TNC Male Connector Solder Attachment 4 Hole Flange
Mount Pin Terminal, .531 inch Hole Spacing

RF Connectors Technical Data Sheet PE44654

Material Specifications
Description Material Plating
Contact Brass Gold
MIL-G-45204

Insulation PTFE
Body Brass Nickel
QQ-N-290

Coupling Nut Brass Nickel
QQ-N-290
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

TNC Male Connector Solder Attachment 4 Hole Flange Mount Pin Terminal, .531 inch Hole Spacing from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Connector Solder Attachment 4 Hole Flange Mount Pin Terminal, .531 inch Hole
Spacing PE44654

URL: https://www.pasternack.com/tnc-male-standard-pin-terminal-connector-pe44654-p.aspx

PE44654 REV 1.1 2
