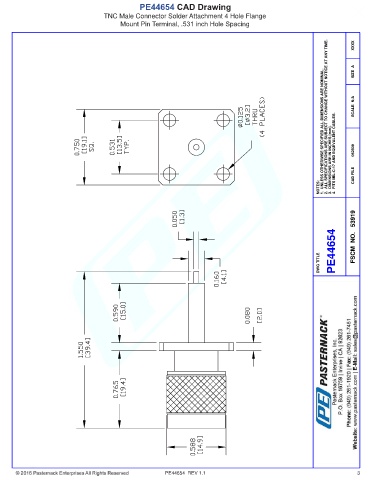

PE44654 CAD Drawing
TNC Male Connector Solder Attachment 4 Hole Flange
Mount Pin Terminal, .531 inch Hole Spacing
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 062509
NOTES: CAD FILE
PE44654 FSCM NO. 53919
DWG TITLE
PE44654 REV 1.1 3
