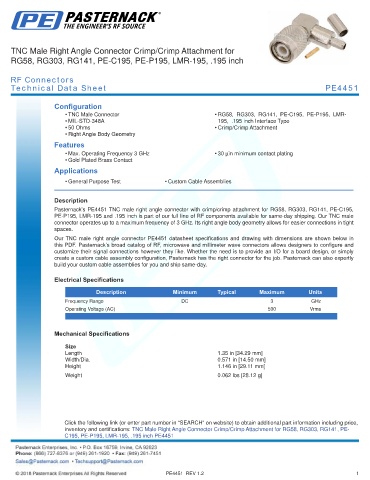

TNC Male Right Angle Connector Crimp/Crimp Attachment for
RG58, RG303, RG141, PE-C195, PE-P195, LMR-195, .195 inch
RF Connectors
Technical Data Sheet PE4451
Configuration
• TNC Male Connector • RG58, RG303, RG141, PE-C195, PE-P195, LMR-
• MIL-STD-348A 195, .195 inch Interface Type
• 50 Ohms • Crimp/Crimp Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 3 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4451 TNC male right angle connector with crimp/crimp attachment for RG58, RG303, RG141, PE-C195,
PE-P195, LMR-195 and .195 inch is part of our full line of RF components available for same-day shipping. Our TNC male
connector operates up to a maximum frequency of 3 GHz. Its right angle body geometry allows for easier connections in tight
spaces.
Our TNC male right angle connector PE4451 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
Operating Voltage (AC) 500 Vrms
.
Mechanical Specifications
Size
Length 1.35 in [34.29 mm]
Width/Dia. 0.571 in [14.50 mm]
Height 1.146 in [29.11 mm]
.
Weight 0.062 lbs [28.12 g]
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: TNC Male Right Angle Connector Crimp/Crimp Attachment for RG58, RG303, RG141, PE-
C195, PE-P195, LMR-195, .195 inch PE4451
PE4451 REV 1.2 1
