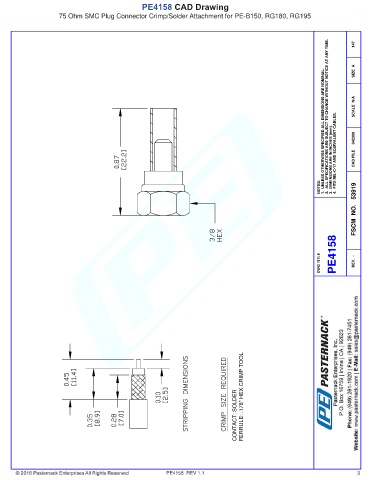

PE4158 CAD Drawing
75 Ohm SMC Plug Connector Crimp/Solder Attachment for PE-B150, RG180, RG195
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042309 CAD FILE
NOTES:
FSCM NO. 53919
DWG TITLE PE4158 REV. -
CONTACT: SOLDER FERRULE: .178" HEX CRIMP TOOL
PE4158 REV 1.1 3
