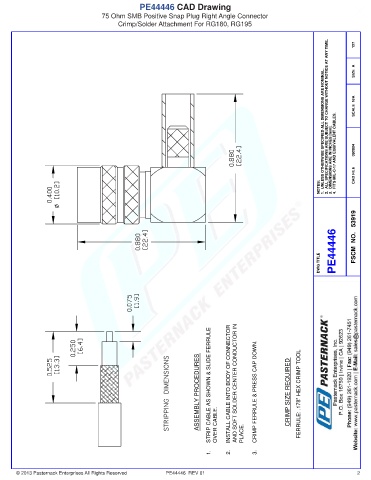

PE44446 CAD Drawing
75 Ohm SMB Positive Snap Plug Right Angle Connector
Crimp/Solder Attachment For RG180, RG195

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 092804

NOTES: CAD FILE

PE44446 FSCM NO. 53919

DWG TITLE

ASSEMBLY PROCEDURES STRIP CABLE AS SHOWN & SLIDE FERRULE INSTALL CABLE INTO BODY OF CONNECTOR AND SOFT SOLDER CENTER CONDUCTOR IN CRIMP FERRULE & PRESS CAP DOWN. CRIMP SIZE REQUIRED FERRULE: .178" HEX CRIMP TOOL

1. OVER CABLE. 2. PLACE. 3.

© 2013 Pasternack Enterprises All Rights Reserved PE44446 REV 01 2
