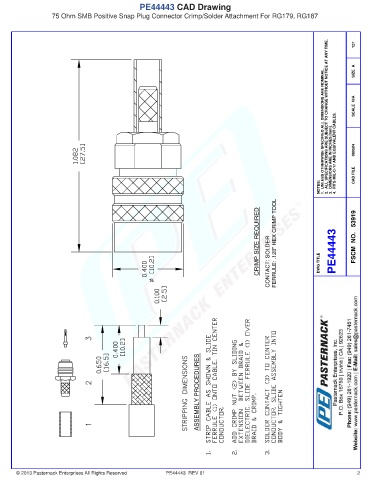

PE44443 CAD Drawing
75 Ohm SMB Positive Snap Plug Connector Crimp/Solder Attachment For RG179, RG187

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 080504

NOTES: CAD FILE

CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .128" HEX CRIMP TOOL DWG TITLE PE44443 FSCM NO. 53919

ASSEMBLY PROCEDURES

© 2013 Pasternack Enterprises All Rights Reserved PE44443 REV 01 2
