75 Ohm SMB Positive Snap Plug Connector Crimp/
Solder Attachment For RG59, RG62

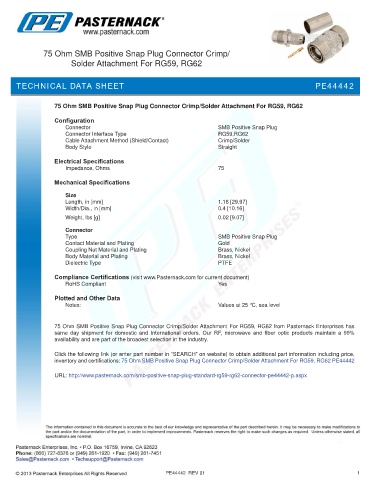

TECHNICAL DATA SHEET PE44442

75 Ohm SMB Positive Snap Plug Connector Crimp/Solder Attachment For RG59, RG62

Configuration
Connector SMB Positive Snap Plug
Connector Interface Type RG59,RG62
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 1.18 [29.97]
Width/Dia., in [mm] 0.4 [10.16]
.
Weight, lbs [g] 0.02 [9.07]

Connector
Type SMB Positive Snap Plug
Contact Material and Plating Gold
Coupling Nut Material and Plating Brass, Nickel
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm SMB Positive Snap Plug Connector Crimp/Solder Attachment For RG59, RG62 from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Positive Snap Plug Connector Crimp/Solder Attachment For RG59, RG62 PE44442

URL: http://www.pasternack.com/smb-positive-snap-plug-standard-rg59-rg62-connector-pe44442-p.aspx

PE44442 REV 01 1
