75 Ohm SMB Jack Right Angle Bulkhead Connector Solder
Attachment Solder Cup Terminal, .295 inch D Hole

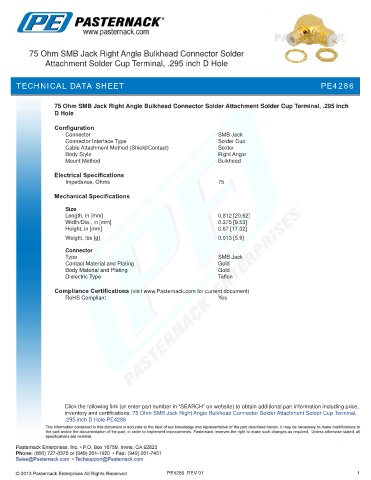

TECHNICAL DATA SHEET PE4286

75 Ohm SMB Jack Right Angle Bulkhead Connector Solder Attachment Solder Cup Terminal, .295 inch
D Hole

Configuration
Connector SMB Jack
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Right Angle
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications
Size
Length, in [mm] 0.812 [20.62]
Width/Dia., in [mm] 0.375 [9.53]
Height, in [mm] 0.67 [17.02]
.
Weight, lbs [g] 0.013 [5.9]
Connector
Type SMB Jack
Contact Material and Plating Gold
Body Material and Plating Gold
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Jack Right Angle Bulkhead Connector Solder Attachment Solder Cup Terminal,
.295 inch D Hole PE4286

PE4286 REV 01 1
