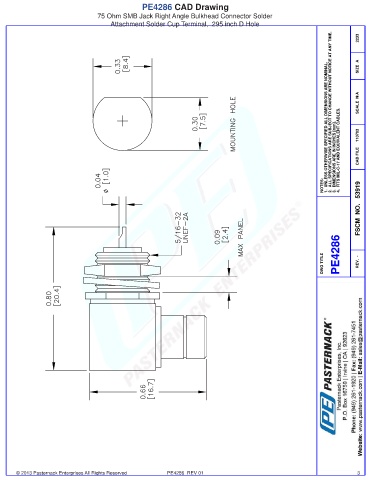

PE4286 CAD Drawing
75 Ohm SMB Jack Right Angle Bulkhead Connector Solder
Attachment Solder Cup Terminal, .295 inch D Hole
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 110703 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4286 REV. -

© 2013 Pasternack Enterprises All Rights Reserved PE4286 REV 01 3
