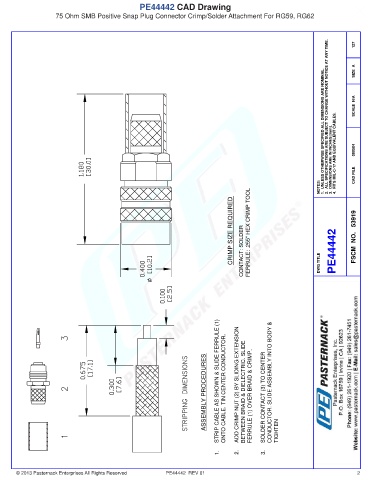

PE44442 CAD Drawing
75 Ohm SMB Positive Snap Plug Connector Crimp/Solder Attachment For RG59, RG62

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 080504

NOTES: CAD FILE

CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .255" HEX CRIMP TOOL DWG TITLE PE44442 FSCM NO. 53919

ASSEMBLY PROCEDURES STRIP CABLE AS SHOWN & SLIDE FERRULE (1) ONTO CABLE. TIN CENTER CONDUCTOR. ADD CRIMP NUT (2) BY SLIDING EXTENSION BETWEEN BRAID & DIELECTRIC. SLIDE FERRULE (1) OVER BRAID & CRIMP. SOLDER CONTACT (3) TO CENTER CONDUCTOR. SLIDE ASSEMBLY INTO BODY &

1. 2. 3. TIGHTEN

© 2013 Pasternack Enterprises All Rights Reserved PE44442 REV 01 2
