75 Ohm SMB Positive Snap Plug Right Angle Connector
Crimp/Solder Attachment For RG180, RG195

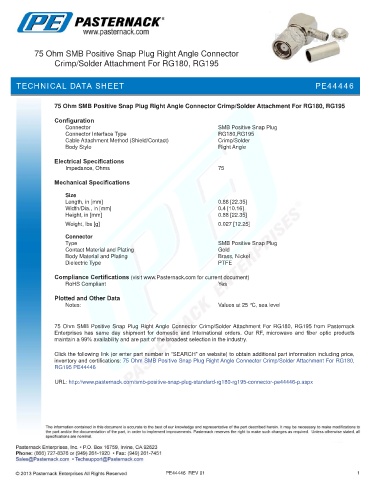

TECHNICAL DATA SHEET PE44446

75 Ohm SMB Positive Snap Plug Right Angle Connector Crimp/Solder Attachment For RG180, RG195

Configuration
Connector SMB Positive Snap Plug
Connector Interface Type RG180,RG195
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Right Angle
Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 0.88 [22.35]
Width/Dia., in [mm] 0.4 [10.16]
Height, in [mm] 0.88 [22.35]
.
Weight, lbs [g] 0.027 [12.25]
Connector
Type SMB Positive Snap Plug
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm SMB Positive Snap Plug Right Angle Connector Crimp/Solder Attachment For RG180, RG195 from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Positive Snap Plug Right Angle Connector Crimp/Solder Attachment For RG180,
RG195 PE44446

URL: http://www.pasternack.com/smb-positive-snap-plug-standard-rg180-rg195-connector-pe44446-p.aspx

PE44446 REV 01 1
