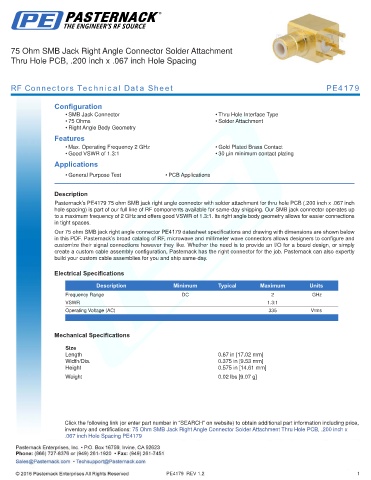

75 Ohm SMB Jack Right Angle Connector Solder Attachment
Thru Hole PCB, .200 inch x .067 inch Hole Spacing

RF Connectors Technical Data Sheet PE4179

Configuration
• SMB Jack Connector • Thru Hole Interface Type
• 75 Ohms • Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 2 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE4179 75 ohm SMB jack right angle connector with solder attachment for thru hole PCB (.200 inch x .067 inch
hole spacing) is part of our full line of RF components available for same-day shipping. Our SMB jack connector operates up
to a maximum frequency of 2 GHz and offers good VSWR of 1.3:1. Its right angle body geometry allows for easier connections
in tight spaces.
Our 75 ohm SMB jack right angle connector PE4179 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 2 GHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications

Size
Length 0.67 in [17.02 mm]
Width/Dia. 0.375 in [9.53 mm]
Height 0.575 in [14.61 mm]
.
Weight 0.02 lbs [9.07 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Jack Right Angle Connector Solder Attachment Thru Hole PCB, .200 inch x
.067 inch Hole Spacing PE4179

PE4179 REV 1.2 1
