75 Ohm SMB Jack Bulkhead Connector Solder
Attachment Solder Cup Terminal, .295 inch D Hole

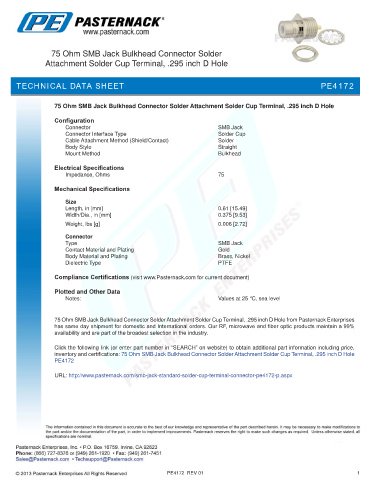

TECHNICAL DATA SHEET PE4172

75 Ohm SMB Jack Bulkhead Connector Solder Attachment Solder Cup Terminal, .295 inch D Hole

Configuration
Connector SMB Jack
Connector Interface Type Solder Cup
Cable Attachment Method (Shield/Contact) Solder
Body Style Straight
Mount Method Bulkhead

Electrical Specifications
Impedance, Ohms 75

Mechanical Specifications

Size
Length, in [mm] 0.61 [15.49]
Width/Dia., in [mm] 0.375 [9.53]
.
Weight, lbs [g] 0.006 [2.72]
Connector
Type SMB Jack
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)

Plotted and Other Data
Notes: Values at 25 °C, sea level

75 Ohm SMB Jack Bulkhead Connector Solder Attachment Solder Cup Terminal, .295 inch D Hole from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMB Jack Bulkhead Connector Solder Attachment Solder Cup Terminal, .295 inch D Hole
PE4172

URL: http://www.pasternack.com/smb-jack-standard-solder-cup-terminal-connector-pe4172-p.aspx

PE4172 REV 01 1
