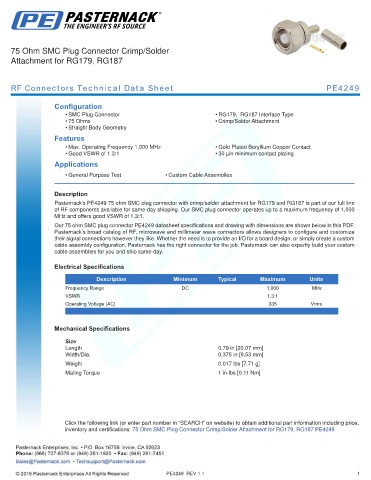

75 Ohm SMC Plug Connector Crimp/Solder
Attachment for RG179, RG187

RF Connectors Technical Data Sheet PE4249

Configuration
• SMC Plug Connector • RG179, RG187 Interface Type
• 75 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 1,000 MHz • Gold Plated Beryllium Copper Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4249 75 ohm SMC plug connector with crimp/solder attachment for RG179 and RG187 is part of our full line
of RF components available for same-day shipping. Our SMC plug connector operates up to a maximum frequency of 1,000
MHz and offers good VSWR of 1.3:1.
Our 75 ohm SMC plug connector PE4249 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
VSWR 1.3:1
Operating Voltage (AC) 335 Vrms
.

Mechanical Specifications

Size
Length 0.79 in [20.07 mm]
Width/Dia. 0.375 in [9.53 mm]
.
Weight 0.017 lbs [7.71 g]
.
Mating Torque 1 in-lbs [0.11 Nm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: 75 Ohm SMC Plug Connector Crimp/Solder Attachment for RG179, RG187 PE4249

PE4249 REV 1.1 1
