Bi-Directional Amplifiers

6 bi-directional amplifier models cover popular VHF/UHF, L, S, and C frequency bands
Several designs incorporate highly efficient GaN semiconductor technology
Transmit (Tx) output Psat levels range from 8 to 20 watts that boost performance of data links and transmitters
Designs offer sensitive receiver performance with 2.5 dB noise figure/li>
Models feature manual or auto-sensing transmit/receive (T/R) control with fast switching times of 1-2 μsec
Rugged mil-grade designs are in compact, environmentally-sealed SMA connectorized packages

All Available for Same-Day Shipping!

	Frequency Band (MHz)	Transmit Gain(dB)	Transmit Output Power Psat (Watts)	Switching Speed (µsec)	Receive Gain(dB)	Receive Noise Figure (dB)	Receive P1dB(dBm)	T/R Control	DC Power(V/mA)

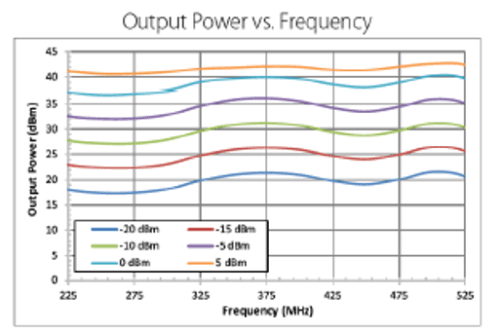

PE15B5007	0.225 to 0.512	36	16	8	15	2.5	3	Manual	28/1600

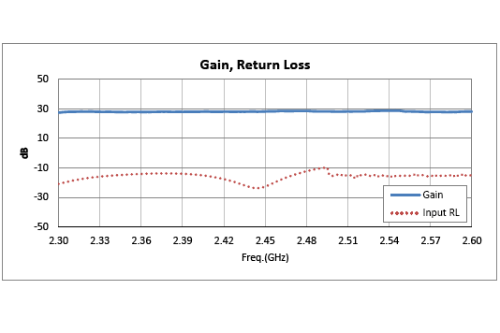

PE15B5000	2.4 to 2.5	20	20	1	11	2.5	0	Manual	28/2400

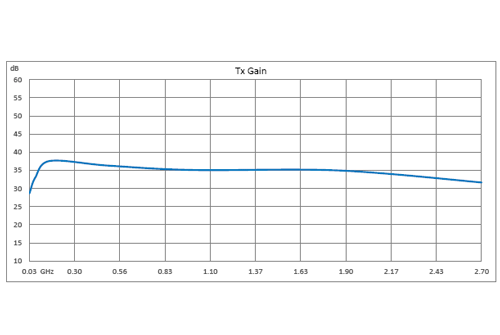

PE15B5003	0.03 to 2.7	36	8	1	30	2	15	Manual	30/1400
PE15B5004	4.4 to 4.9	45	15	2	10	3.5	18	Manual	28/4600
PE15B5005	4.4 to 5.1	10	10	2	10	3	18	Manual	28/1750
PE15B5006	5.125 to 5.875	43	10	2	10	3	18	Autosensing	28/2500

Bi-Directional Amplifiers from Pasternack

Pasternack has added 4 additional models to the existing portfolio of bi-directional amplifiers. 6 different models are now available. The portfolio consists of a comprehensive offering covering popular L, S, C and broadband RF frequency bands that range from 0.225 MHz to 5.875 MHz. Bi-directional amplifiers transmit high-quality signals while amplifying Rx signals with advanced LNA to produce the highest possible data rates. Rugged mil-grade designs are in compact, environmentally-sealed SMA connectorized packages and feature either quick connect or D-SUB connectors for DC and control functions.

These bi-directional amplifiers are in-stock and available for same-day shipment!
