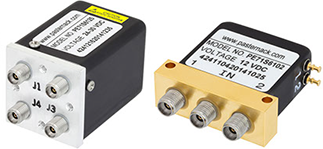

General Purpose Electromechanical RF Switches
  • Switch designs cover broad frequency bandwidths from DC to 46 GHz
  • Power handling capability ranges from 10 watts to 275 watts
  • Impressive performance which includes up to 80 dB Isolation and 15 ms Switching Speed
  • Popular configurations include SPDT, DPDT, SP4T, SP6T, SP10T, and Transfer
  • Compact package designs are available in a variety of different connectorized options
  • All the desirable features including Latching and Failsafe actuators, Indicators, and TTL control

General Purpose Electromechanical RF Switches

Our general purpose multimarket coaxial packaged electromechanical switches are uniquely qualified for use in numerous applications including military communications, radar, Commercial and military aviation, SATCOM, test & instrumentation, medical equipment and others.

Pasternack’s general purpose electromechanical switches consists of more than 130 connectorized designs that are guaranteed for 1 million life cycles. These new general purpose switches complement Pasternack’s existing family of 2M to 10M life cycle High-Rel Electromechanical Relay Switches, making the company’s in-stock RF switch portfolio the largest in the industry. These RF relay switches are available in a variety of different connector options including SMA, N Type, TNC and 2.92mm and are offered in popular configurations such SPDT, DPDT, SP4T, SP6T, SP10T and Transfer. Additional features available on specific models include Latching Actuators, Failsafe Actuators, Indicators, TTL Controls, Terminations, Pulse Latching and Hot Switching.

The new general purpose electromechanical switches from Pasternack cover frequency ranges from DC to 46 GHz and have power ratings ranging from 10 Watts to 275 Watts. These RF switches also boast high isolation up to 80 dB, switching speeds ranging from 15 ms to 50 ms and low insertion loss ranging 0.2 dB to 0.6 dB. All materials and finishes are in accordance with applicable MIL standards.
