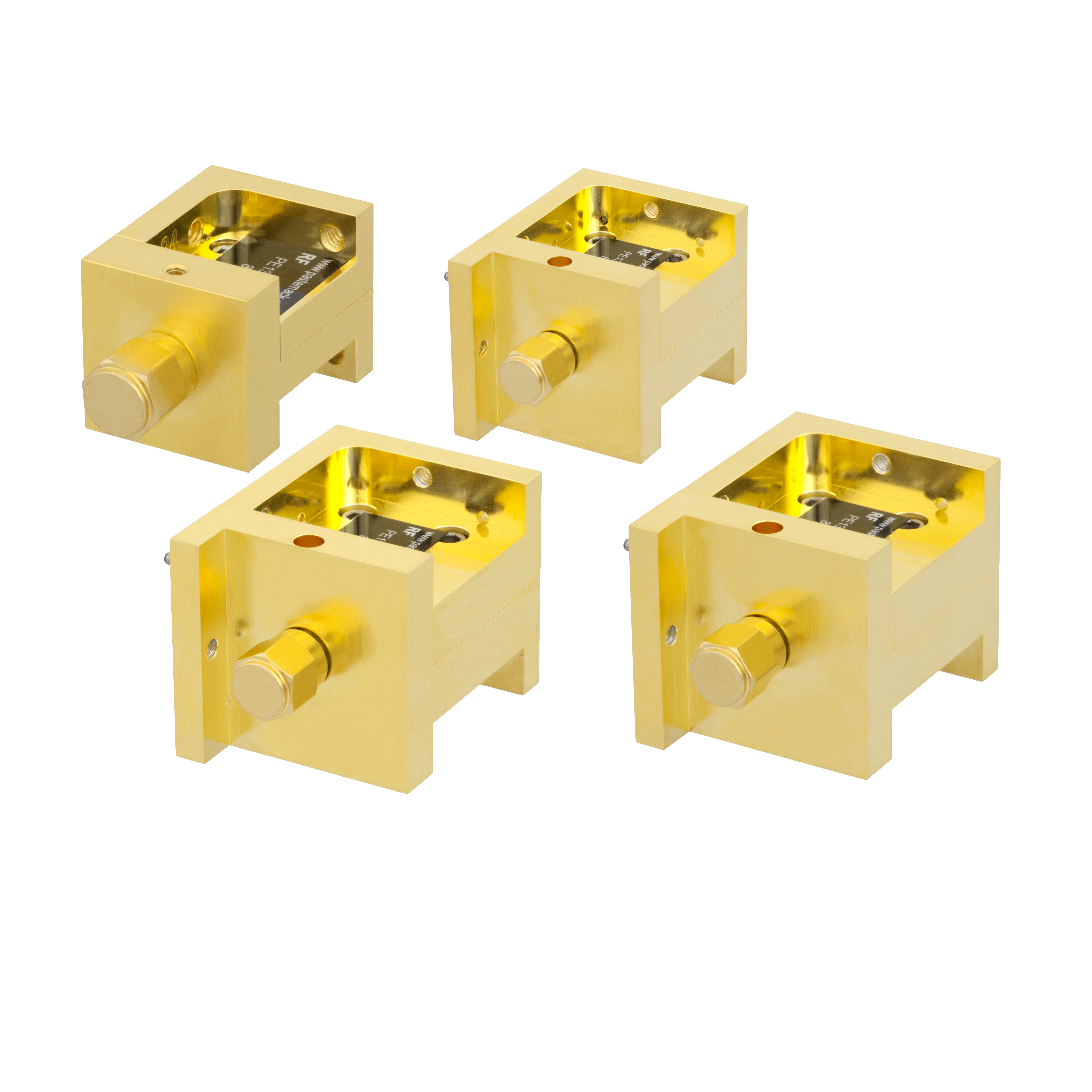

Millimeter Wave Waveguide Frequency Mixers
  • LO and RF frequency ranges from 26.5 to 110 GHz
  • Waveguide mixer IF Frequency range covers DC to 18 GHz
  • Popular waveguide mixer sizes range from WR-28 to WR-10
  • Balanced frequency mixer configurations exhibit low conversion loss performance across
    full Ka, Q, U, V, E, & W bands
  • Millimeter wave mixer designs utilize high performance GaAs Schottky barrier beam lead diodes
  • Compact and rugged package designs feature integrated Waveguide ports

Waveguide frequency mixer series is in stock and ready for same-day shipping!

Click on the links below for more details

Part No.

Frequency
Band

(GHz)

Gain

Harmonics

(dBc)

Psat

(Watt)

PAE

(%)

TTL

Control

DC Power

(Volts/Amps)

Mechanical

Dimensions

L(in) X W(in) X H(in)

Connector

Type

ECCN

Part No.

Frequency Mixer Band

RF/LO Frequency
(GHz)

IF
Frequency
(GHz)

Typical
Conversion
Loss (dB)

Maximum
RF Input
Power (dBm)

Waveguide
Interface

Mechanical Dimensions

L(in) X W(in) X H(in)

ECCN

Waveguide Mixer Down Converter WR-10 From 75 GHz to 110 GHz, IF From DC to 18 GHz And LO Power of +13 dBm, UG-387/U Flange, W Band PE12D1000

W

75 to 110

DC to 18

9

+5

WR-10
UG-387/U Flange

1.40" x 0.75" x 0.75"

EAR99


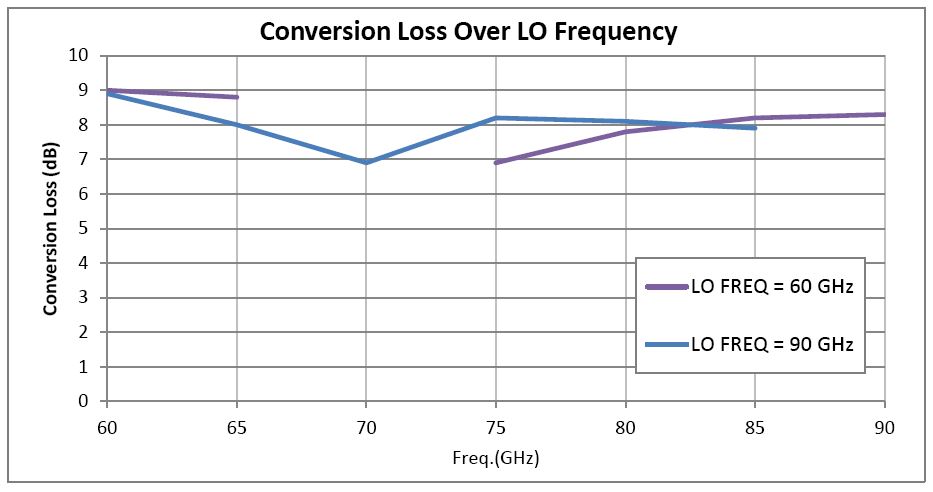

Waveguide Mixer Down Converter WR-12 From 60 GHz to 90 GHz, IF From DC to 18 GHz And LO Power of +13 dBm, UG-387/U Flange, E Band PE12D1001

E

60 to 90

DC to 18

8.5

+5

WR-12
UG-387/U Flange

1.40" x 0.75" x 0.75"

EAR99


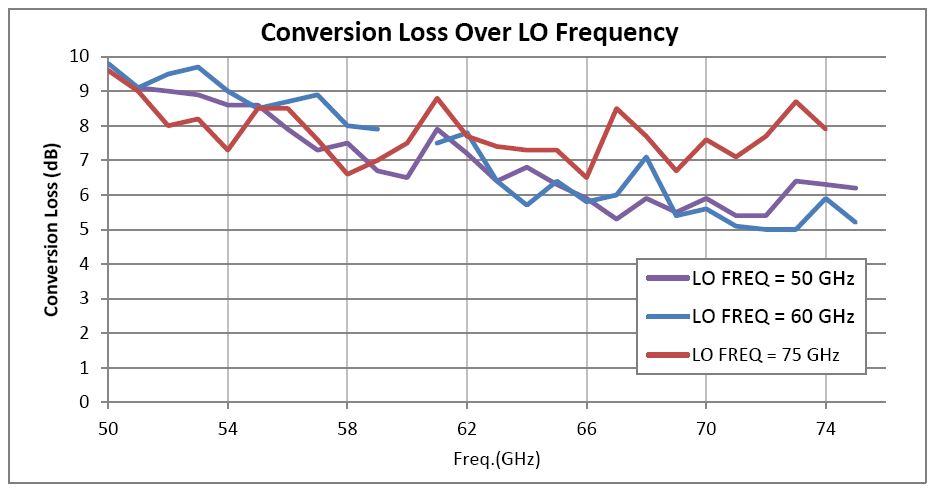

Waveguide Mixer Down Converter WR-15 From 50 GHz to 75 GHz, IF From DC to 18 GHz And LO Power of +13 dBm, UG-385/U Flange, V Band PE12D1002

V

50 to 75

DC to 18

8

+5

WR-15
UG385/U Flange

1.40" x 0.75" x 0.75"

EAR99


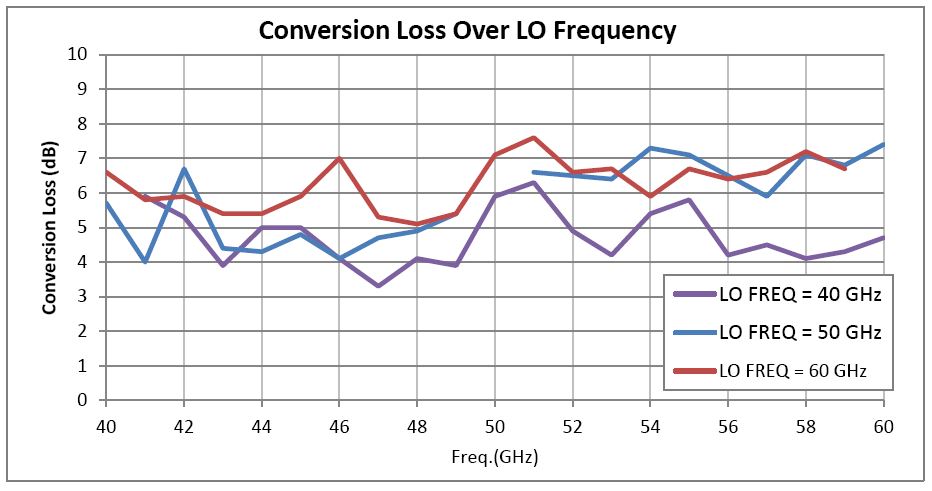

Waveguide Mixer Down Converter WR-19 From 40 GHz to 60 GHz, IF From DC to 18 GHz And LO Power of +13 dBm, UG-383/U Flange, U Band PE12D1003

U

40 to 60

DC to 18

7

+5

WR-19
UG-383/U Flange

1.50" x 1.13" x 1.13"

EAR99


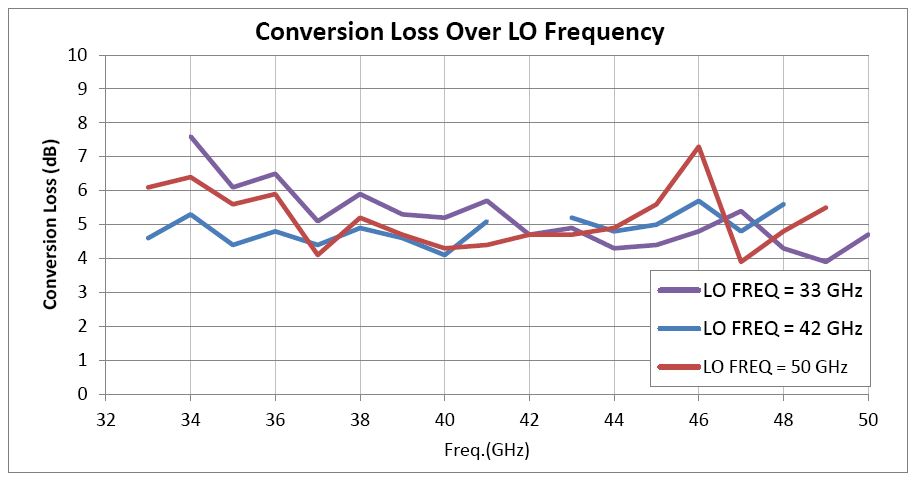

Waveguide Mixer Down Converter WR-22 From 33 GHz to 50 GHz, IF From DC to 18 GHz And LO Power of +13 dBm, UG-383/U Flange, Q Band PE12D1004

Q

33 to 50

DC to 18

6.5

+5

WR-22
UG-383/U Flange

1.50" x 1.13" x 1.13"

EAR99


Waveguide Mixer Down Converter WR-28 From 26.5 GHz to 40 GHz, IF From DC to 18 GHz And LO Power of +13 dBm, UG-599/U Flange, Ka Band PE12D1005

Ka

26.5 to 40

DC to 18

6

+5

WR-28
UG-599/U Flange

1.24" x 0.75" x 0.75"

EAR99

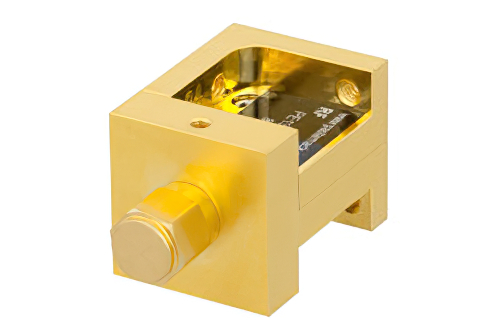

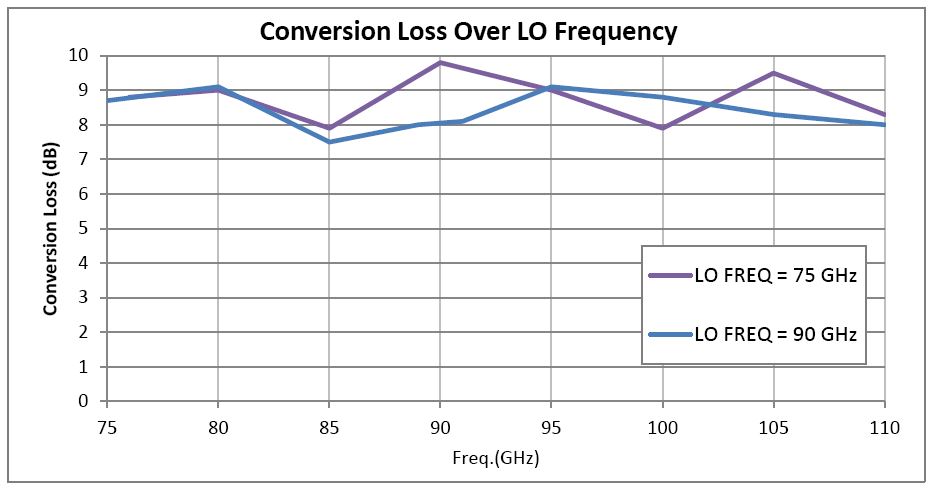

Waveguide Mixer Up Converter WR-10 From 75 GHz to 110 GHz, IF From DC to 18 GHz And LO Power of +13 dBm, UG-387/U Flange, W Band PE13U1000

W

75 to 110

DC to 18

9

+5

WR-10
UG-387/U Flange

1.40" x 0.75" x 0.75"

EAR99


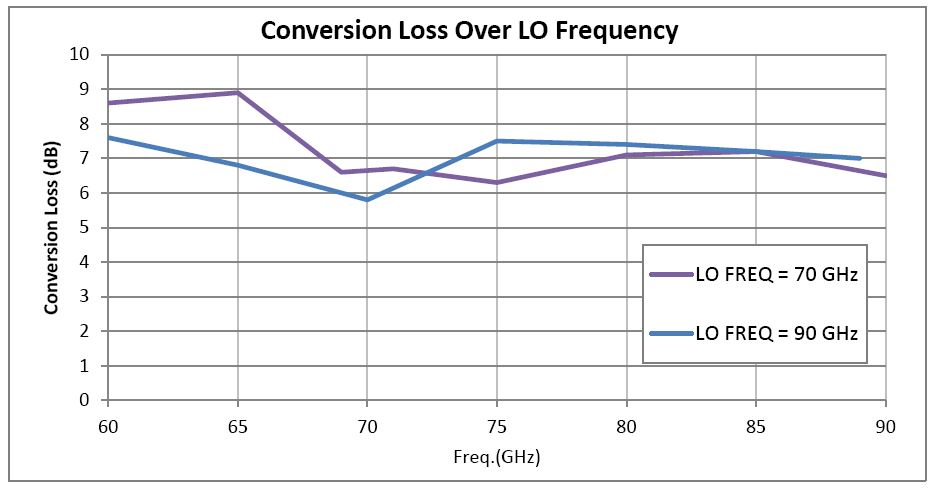

Waveguide Mixer Up Converter WR-12 From 60 GHz to 90 GHz, IF From DC to 18 GHz And LO Power of +13 dBm, UG-387/U Flange, E Band PE13U1001

E

60 to 90

DC to 18

8.5

+5

WR-12
UG-387/U Flange

1.40" x 0.75" x 0.75"

EAR99


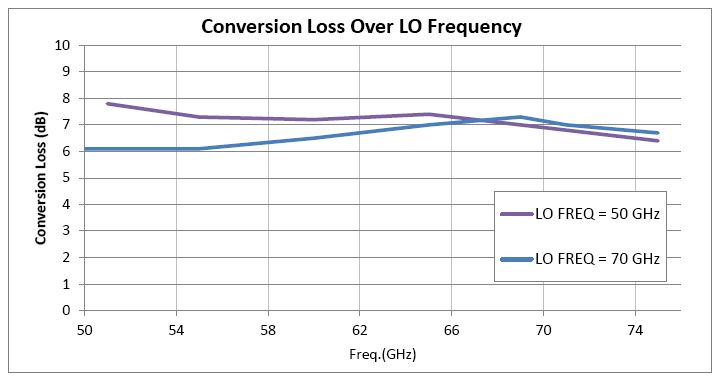

Waveguide Mixer Up Converter WR-15 From 50 GHz to 75 GHz, IF From DC to 18 GHz And LO Power of +13 dBm, UG-385/U Flange, V Band PE13U1002

V

50 to 75

DC to 18

8

+5

WR-15
UG385/U Flange

1.40" x 0.75" x 0.75"

EAR99


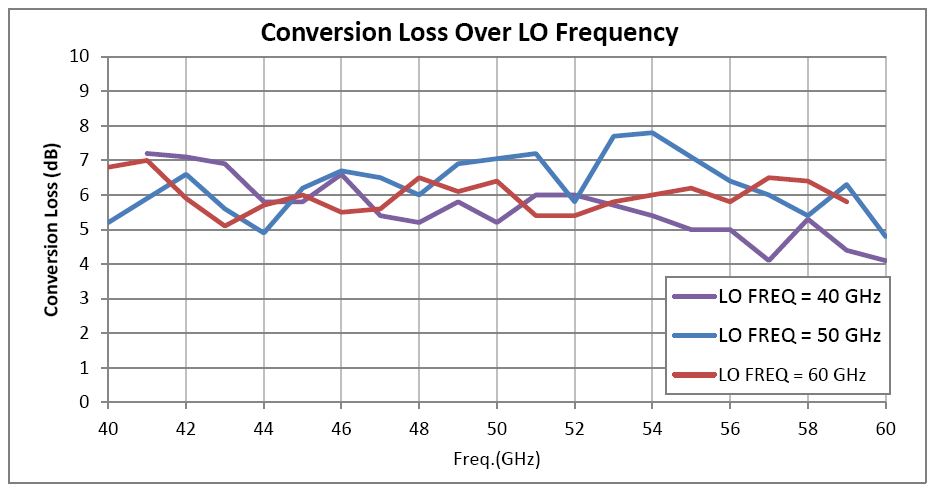

Waveguide Mixer Up Converter WR-19 From 40 GHz to 60 GHz, IF From DC to 18 GHz And LO Power of +13 dBm, UG-383/U Flange, U Band PE13U1003

U

40 to 60

DC to 18

7

+5

WR-19
UG-383/U Flange

1.50" x 1.13" x 1.13"

EAR99


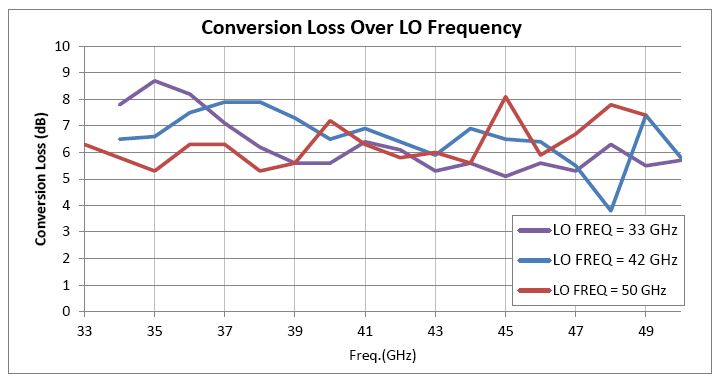

Waveguide Mixer Up Converter WR-22 From 33 GHz to 50 GHz, IF From DC to 18 GHz And LO Power of +13 dBm, UG-383/U Flange, Q Band PE13U1004

Q

33 to 50

DC to 18

6.5

+5

WR-22
UG-383/U Flange

1.50" x 1.13" x 1.13"

EAR99


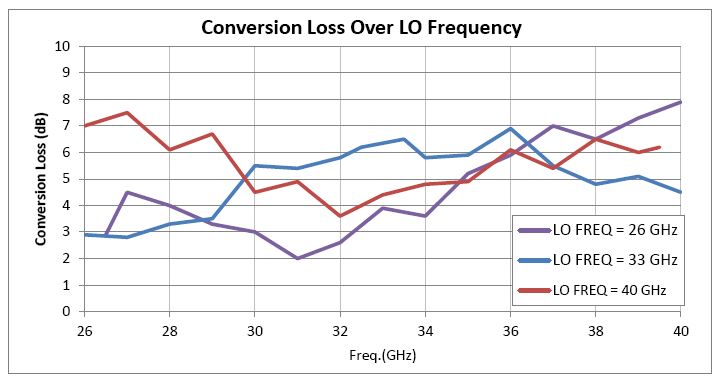

Waveguide Mixer Up Converter WR-28 From 26.5 GHz to 40 GHz, IF From DC to 18 GHz And LO Power of +13 dBm, UG-599/U Flange, Ka Band PE13U1005

Ka

26.5 to 40

DC to 18

6

+5

WR-28
UG-599/U Flange

1.24" x 0.75" x 0.75"

EAR99



Waveguide Frequency Mixer Series

Our new millimeter wave (mm-wave) waveguide frequency mixer series are available in six down-conversion and six up-conversion models that cover full Ka, Q, U, V, E, and W bands. Waveguide frequency mixer designs utilize high performance GaAs Schottky Barrier Beam Lead Diodes in balanced configurations that require a +13 dBm LO drive and display low levels of conversion loss.

These waveguide mixer components, also referred to as waveguide converters, are a key building block component of mm-wave receivers used to down-convert very high frequency signals to usable RF frequencies for cost effective signal processing. They are also very useful for test and measurement applications to convert signals to frequency levels that can be measured with available equipment. Similarly, these frequency mixers for waveguide can be used to efficiently up-convert RF signals to millimeter wave frequencies for point-to-point radio and millimeter wave radar applications.

Our waveguide frequency mixer product line operates over RF and LO frequency bands ranging from 26.5 to 110 GHz with an IF frequency covering DC to 18 GHz. Depending on the model, conversion loss ranges from 6 to 9 dB typical with 20 dB typical RF to LO isolation. Maximum RF input power is +5 dBm and performance is specified over an operating temperature of 0°C to +50°C. Rugged gold plated package designs are thermally stable for high reliability and feature compact dimensions with integrated waveguide sizes ranging from WR-28 to WR-10. As with all other over 40,000 RF, microwave and millimter wave components, these wave guide frequency mixers are in-stock and ship the same day.
