Radar Demonstration Kit

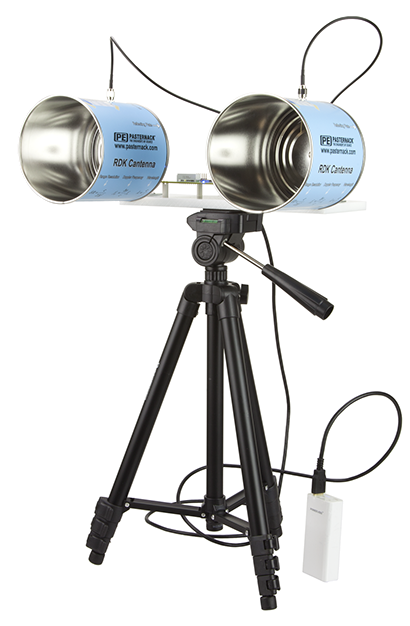

showing with mounting plate, tripod and USB battery pack only included for PEM11002-KIT

Radar Demonstration Kits

  • 2.4 to 2.5 GHz ISM Band
  • Operating Modes: CW, FMCW, Doppler
  • Output Waveforms: Single Tone, Frequency Ramp, Sawtooth
  • On Board Speaker, Signal Indicator, Custom Tunable Filter
  • Command Control via USB or Bluetooth
  • Kit Comes Complete with Radar Board, Antennas, Cables, Mounting Plate, Tripod, USB Battery Pack
  • Ideal for Classroom Instruction and Research & Development to study fundamental radar principles
All Available for Same-Day Shipping!..

Pasternack’s radar demonstration kit is an innovative tool that can be used to study and learn about the principles of microwave radar object detection, motion detection, and determine the range of objects. Experimental radar operating modes can be selected for CW, FMCW, or Doppler. Output waveforms can be set for Single Tone, Frequency Ramp, or Sawtooth. This unique kit contains all digital and RF hardware that features a radar board that includes an integrated speaker and signal indicator to support both audio and visual feedback of received signal strength. A tunable signal filter is also included to allow for design and implementation of customized passive or active filtering.

The radar demonstration unit from Pasternack is command controlled via a downloadable graphical user interface (GUI) for Windows-based computers using the VISA protocol. The connection is made using a simple USB or Bluetooth connection. The PEM11002-KIT model comes complete with a radar board, antennas, cables, and accessories that include a mounting plate, tripod, and USB battery pack. The kit includes a detailed user guide and programming manual as well as a lesson guide.

2.4 GHz to 2.5 GHz ISM Band Radar Demonstration Kit, USB or Bluetooth Control, GUI, Includes Radar Board, Antennas and Cables

Part No. Frequency Band (GHz) Output Power Sweeping (Watt) Output Power CW Mode (Watt) DC Bias (Volts/mA) Analog to Digital Converter (Bits) Analog to Digital Converter Sampling Frequency (Hz) Command Control Bluetooth Version Accessories
PEM11000-KIT 2.4 to 2.5 1 0.125 +5/500 16 20,000 GUI 2.1 + EDR App None

2.4 GHz to 2.5 GHz ISM Band Radar Demonstration Kit, USB or Bluetooth Control, GUI, Includes Radar Board, Antennas, Cables, and Accessories

Part No. Frequency Band (GHz) Output Power Sweeping (Watt) Output Power CW Mode (Watt) DC Bias (Volts/mA) Analog to Digital Converter (Bits) Analog to Digital Converter Sampling Frequency (Hz) Command Control Bluetooth Version Accessories
PEM11002-KIT 2.4 to 2.5 1 0.125 +5/500 16 20,000 GUI 2.1 + EDR App Mounting Plate, Tripod, USB Battery Pack
