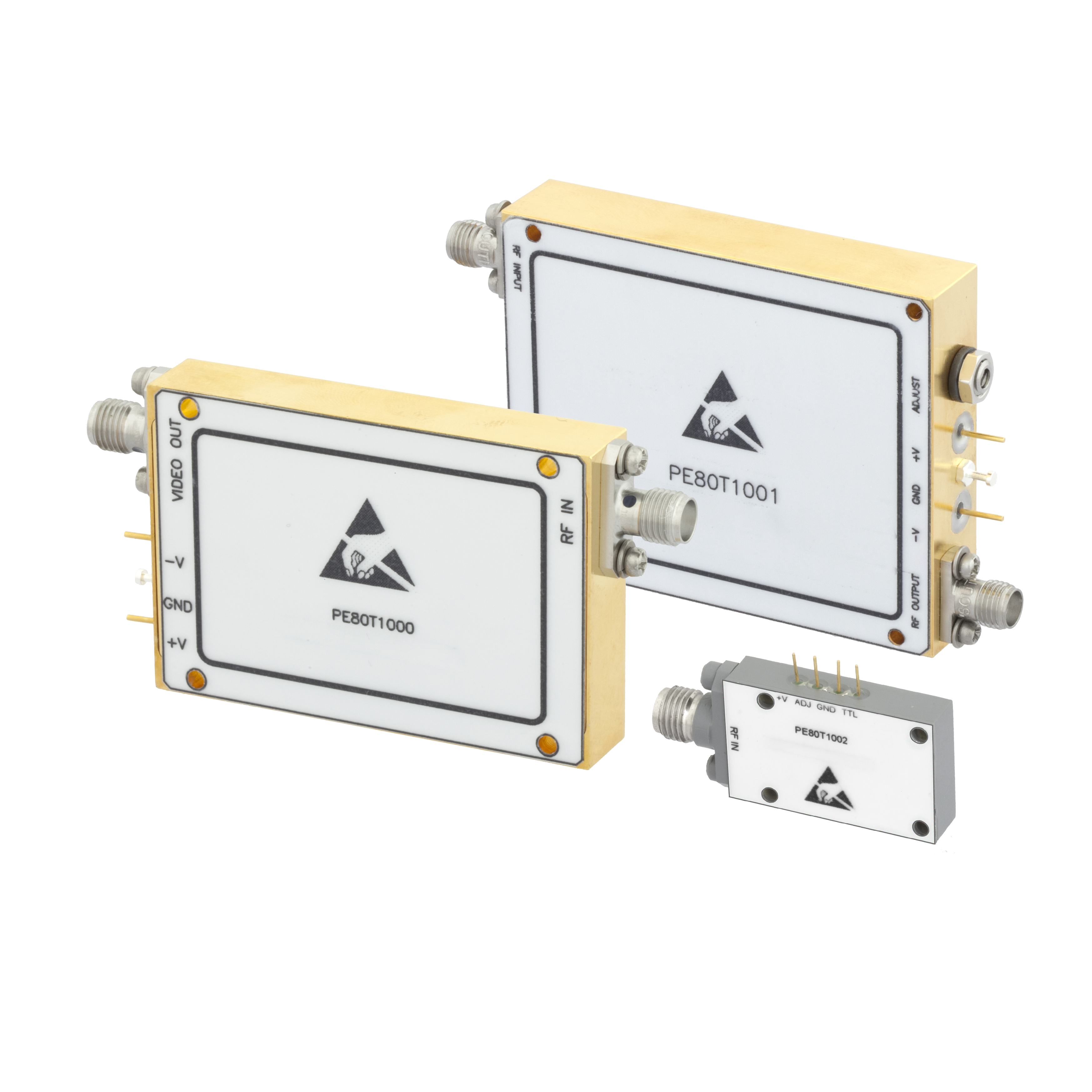

Threshold Detectors for Microwave and Millimeter Wave Applications
  • Threshold detector frequency ranges from 2 to 40 GHz
  • Input power ranges from -45 to 0 dBm

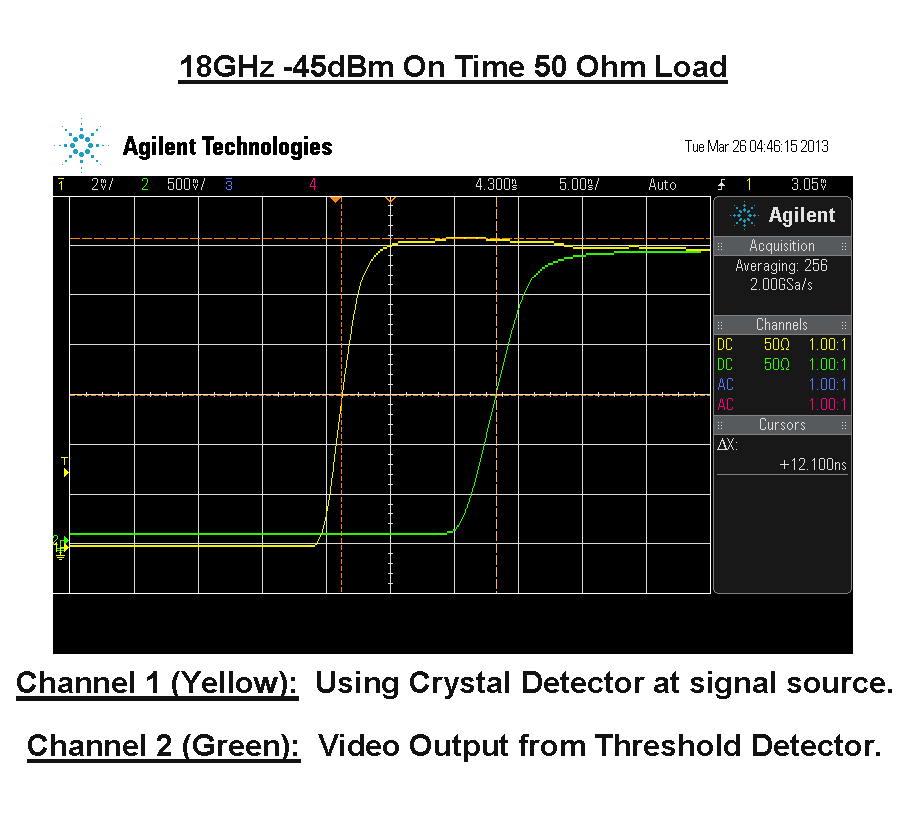

  • Extremely fast response times from 45 to 100 nanoseconds
  • Adjustable and fixed threshold levels
  • Rugged and compact detector packages utilize field replaceable SMA or 2.92mm connectors
  • Threshold detector series is designed to meet MIL-STD-202F environmental conditions

All RF detectors are in stock and ready for same-day shipping!

Click below for more threshold detector details

Part No.

Frequency
Band

(GHz)

Gain

Gain

Variation

+/-(dB)

Harmonics

(dBc)

Psat

(Watt)

PAE

(%)

TTL

Control

DC Power

(Volts/Amps)

Mechanical

Dimensions

L(in) X W(in) X H(in)

Connector

Type

ECCN

Part No.

Detector
Frequency
Band (GHz)

Input Power
Range
(dBm)

Threshold

Maximum
Input Power
(dBm)

Response
Time
(ns)

Detected
Video
Output

DC Power
Supply
(V/mA)

Field
Replaceable Connectors

Threshold Detector, SMA, Video Out, 2 GHz to 18 GHz PE80T1000

2 to 18 GHz

-20 to 10*

Fixed

10

100

TTL

+15/100 -15/100

SMA


Threshold Detector, SMA, Video Out, 2 GHz to 18 GHz PE80T1001

2 to 18 GHz

-45 to -20

Adjustable

10

45

TTL

+12/250 -12/120

SMA


Threshold Detector, 2.92mm, Video Out, 16 GHz to 40 GHz PE80T1002

16 to 40 GHz

-20 to 0

Adjustable

17

100

TTL

+15/66

2.92mm



* Input power -20 to +10 dBm=TTL"1", Input power no signal to -25dBm=TTL "0"

Threshold Detector Series from Pasternack

This threshold detector series covers broadband frequency bands from 2 to 40 GHz. Threshold detector designs incorporate gain stages for higher dynamic range that cover input power levels ranging from -45 dBm to 0 dBm. Typical detector threshold variation over frequency of ± 0.5 dB.

One detector model supports a fixed threshold while the other 2 detectors support an adjustable threshold setting. All models feature a TTL compatible video output response which is “1” when the RF signal is above the threshold setting. The detector TTL compatible video output response is “0” when it’s below the threshold setting.

Additional features of these threshold detectors include rugged construction utilizing compact packages. Pasternack threshold detector series uses field replaceable SMA or 2.92mm connectors. The models are designed to meet MIL-STD-202F environmental conditions for temperature cycle, humidity, shock, vibration and altitude.

Our threshold detectors also boast extremely fast response times ranging from 45 to 100 nanoseconds, maximum input power handling ranging from +10 to +17 dBm, and have an operating temperature range of -55 to +85 degrees Celsius. As with the other over 40,000 RF, microwave and millimeter wave Pasternack components, our RF threshold detectors are in-stock. Not only are the RF detectors in stock, they ship the same day as purchased.
