• Broad Frequency Coverage from 400 MHz to 18 GHz
• Voltage Variable Attenuation Ranges from 0 to 60 dB

• Highly Linear PIN Diode Designs offer Accurate Control for a Wide Range of Applications

• Voltage Variable Attenuators have Low Insertion Loss and Wide Dynamic Range

• CW Input Power rated up to +23 dBm

• Excellent VSWR over all Attenuation levels
• Rugged Coaxial Packages Designed to meet MIL-STD-202 Environmental Conditions



Voltage variable attenuator series is in stock and ready for same-day shipping!

Click on the links below for more details

Voltage Variable Attenuators


Part No.

& Additional

Views

Frequency
Band (GHz)

Attenuation
Range (dB)

 Maximum
Insertion Loss
(dB)

CW Power
Rating (dBm)

Switching
Speed (µsec)

Voltage
Control Range
(volts)

DC Power
Supply
(Volts)

Connectors
(RF / Control)

ECCN

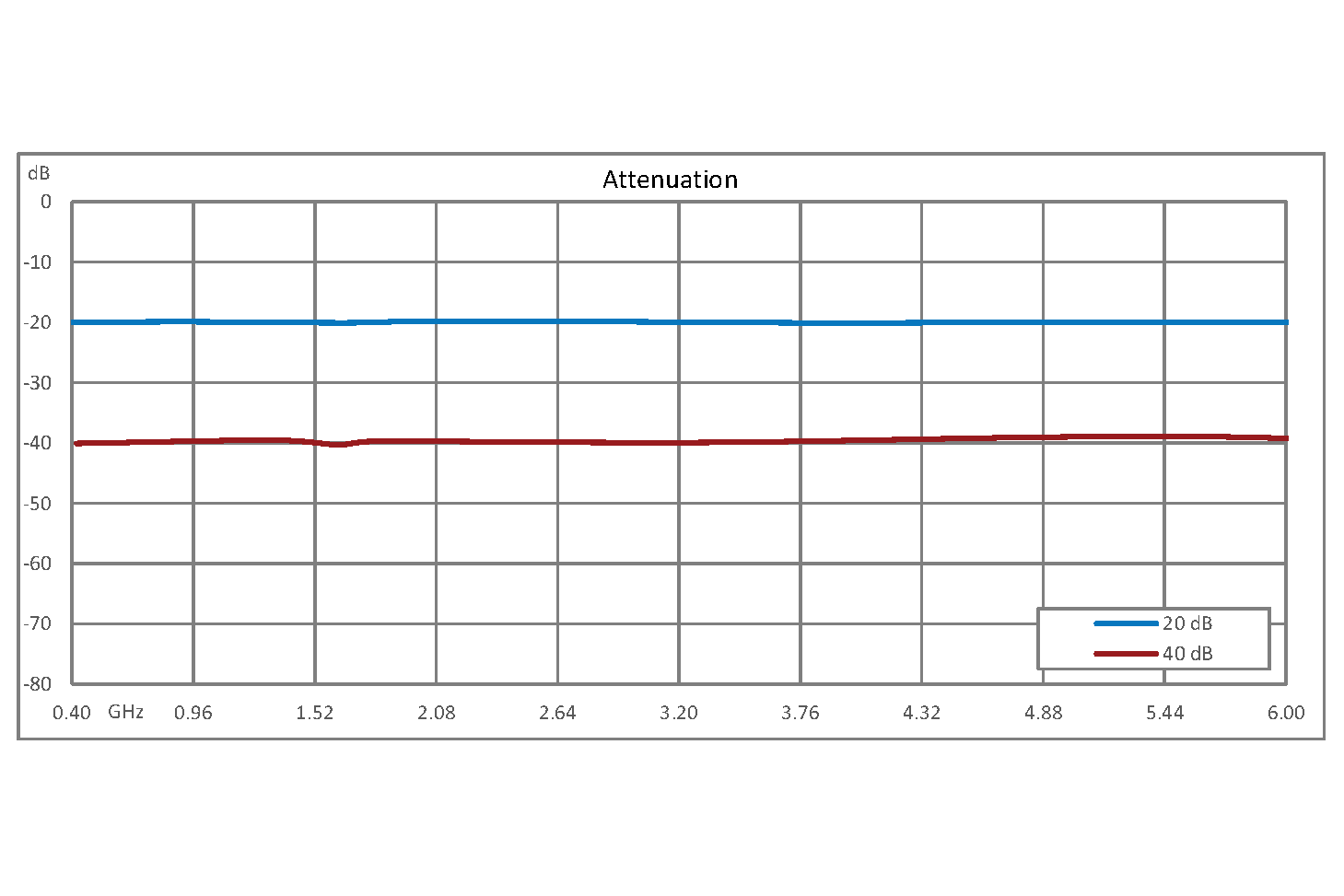

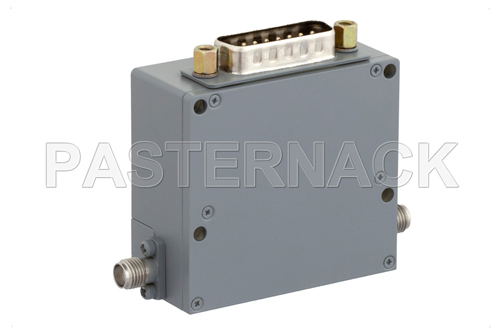

0 to 40 dB Voltage Variable Attenuator, PIN Diode, 400 MHz To 6 GHz, SMA   PE70A1000

0.4 to 6

0 to 40

4

+23

10

0 to +10

+ 12

SMA Female /
15 Pin D-SUB Female

EAR99

  • descr0 to 40 dB Voltage Variable Attenuator, PIN Diode, 400 MHz To 6 GHz, SMA
  • descr0 to 40 dB Voltage Variable Attenuator, PIN Diode, 400 MHz To 6 GHz, SMA
  • descr0 to 40 dB Voltage Variable Attenuator, PIN Diode, 400 MHz To 6 GHz, SMA

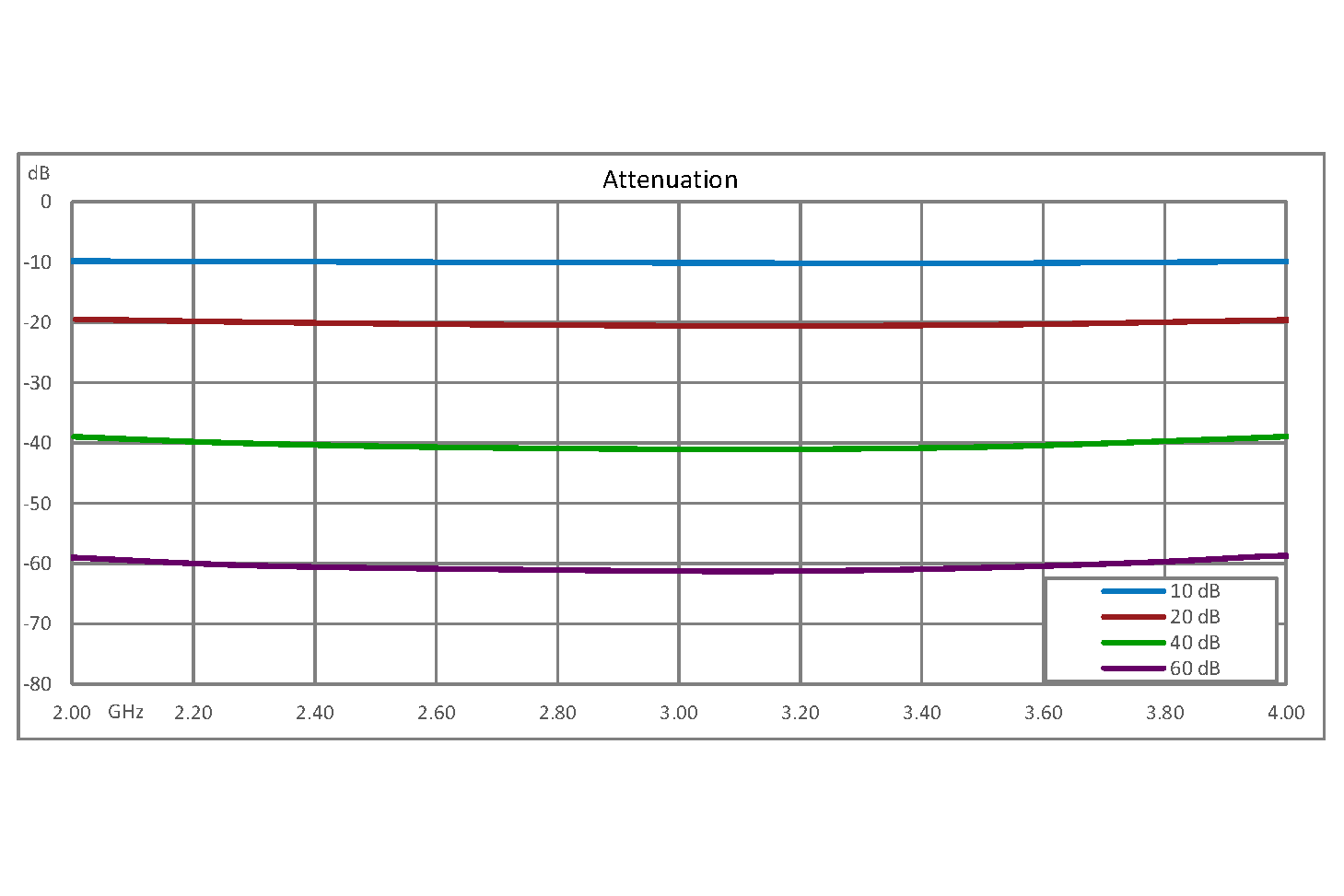

0 to 60 dB Voltage Variable Attenuator, PIN Diode, 2 GHz To 4 GHz, SMA   PE70A2000

2 to 4

0 to 60

2

+20

0.5

0 to +6

+ 12

SMA Female*/
15 Pin Micro-D Female

EAR99

  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 2 GHz To 4 GHz, SMA
  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 2 GHz To 4 GHz, SMA
  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 2 GHz To 4 GHz, SMA



0 to 60 dB Voltage Variable Attenuator, PIN Diode, 4 GHz To 8 GHz, SMA   PE70A2001

4 to 8

0 to 60

2.5

+20

0.5

0 to +6

+ 12

SMA Female*/
15 Pin Micro-D Female

EAR99

  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 4 GHz To 8 GHz, SMA
  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 4 GHz To 8 GHz, SMA
  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 4 GHz To 8 GHz, SMA

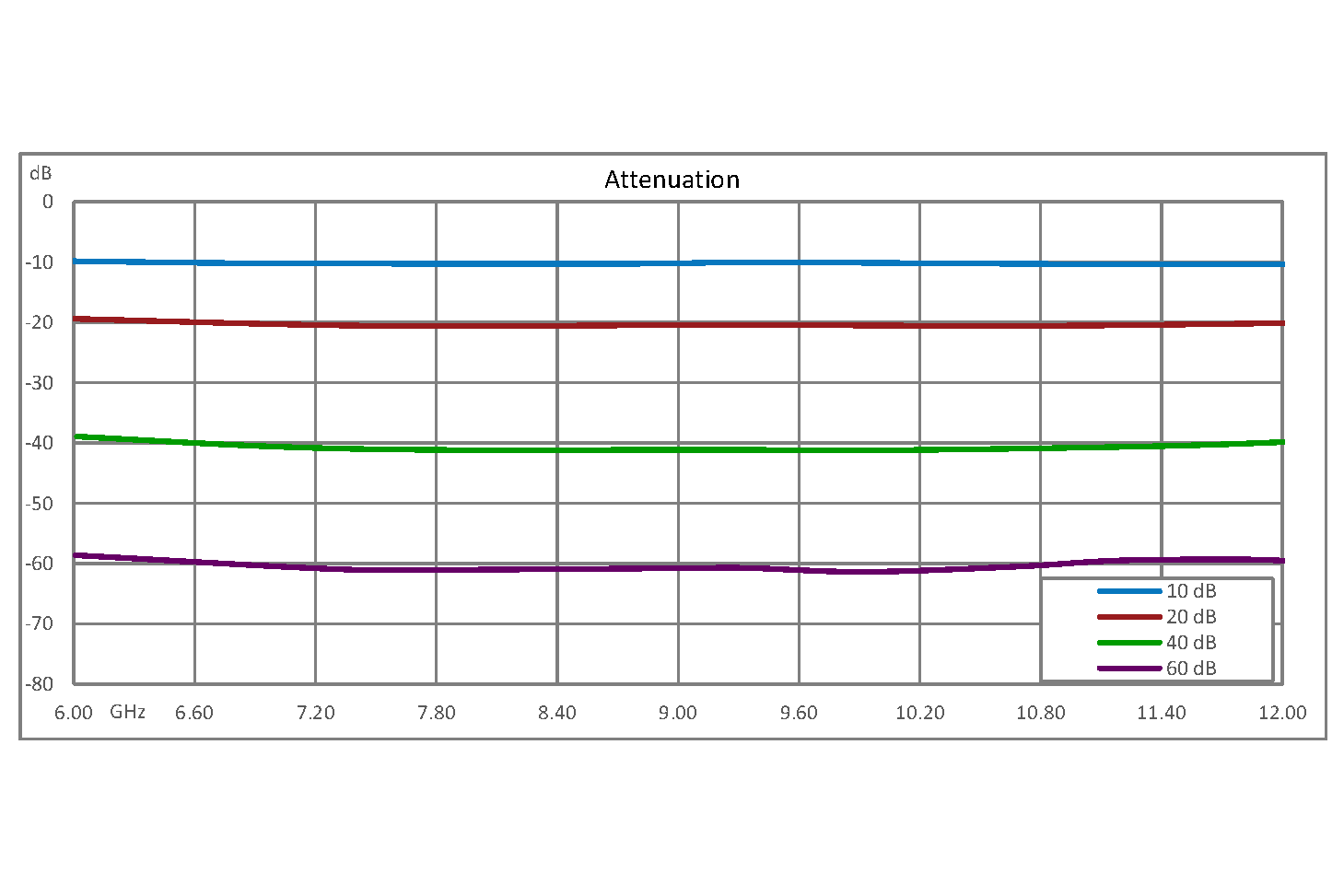

0 to 60 dB Voltage Variable Attenuator, PIN Diode, 6 GHz To 12 GHz, SMA   PE70A2002

6 to 12

0 to 60

2.8

+20

0.5

0 to +6

+ 12

SMA Female*/
15 Pin Micro-D Female

EAR99

  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 6 GHz To 12 GHz, SMA
  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 6 GHz To 12 GHz, SMA
  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 6 GHz To 12 GHz, SMA

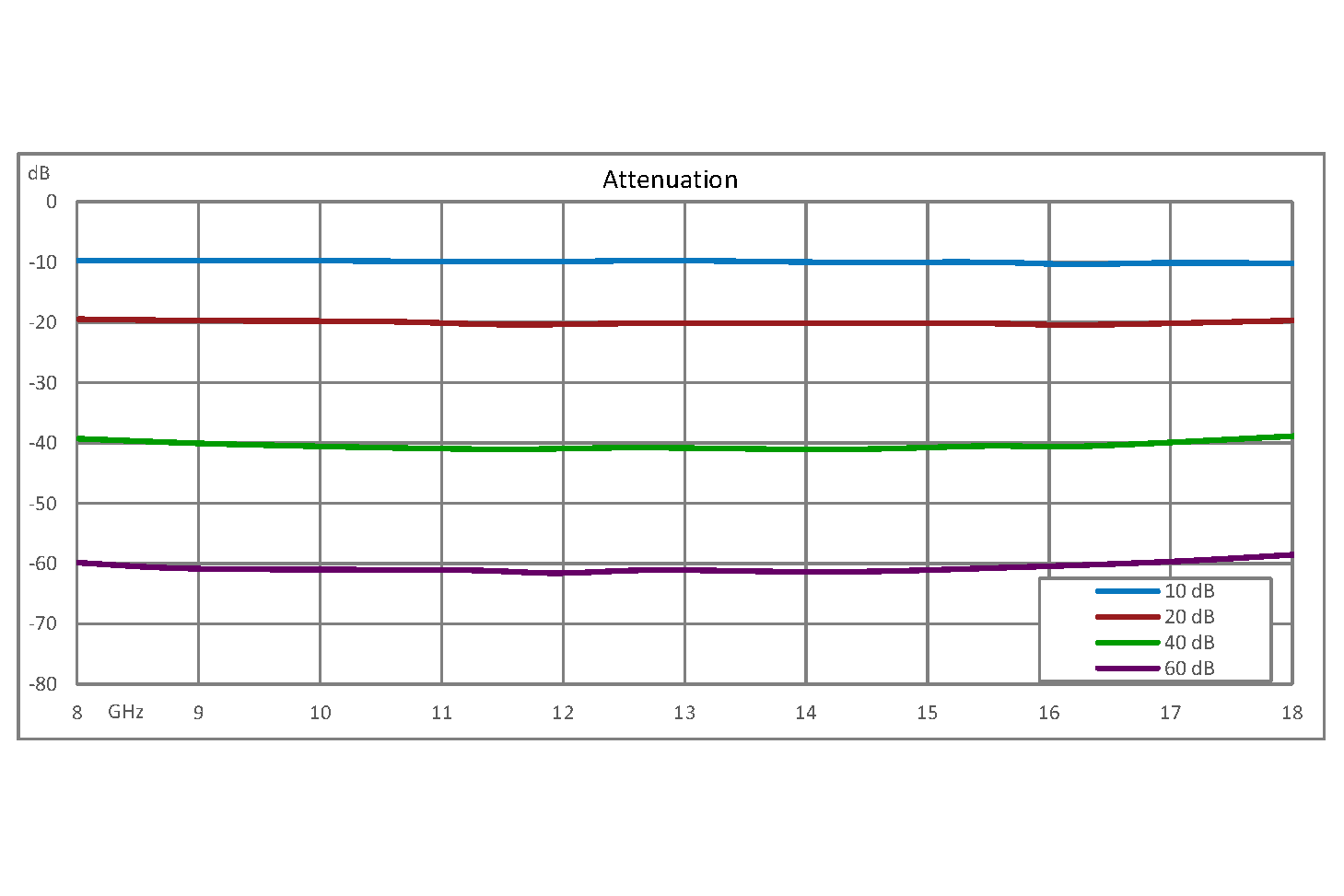

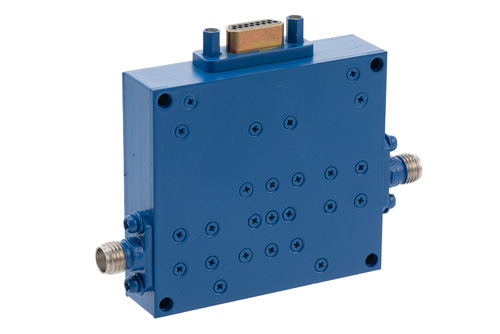

0 to 60 dB Voltage Variable Attenuator, PIN Diode, 8 GHz To 18 GHz, SMA   PE70A2003

8 to 18

0 to 60

3.7

+20

0.5

0 to +6

+ 12

SMA Female*/
15 Pin Micro-D Female

EAR99

  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 8 GHz To 18 GHz, SMA
  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 8 GHz To 18 GHz, SMA
  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 8 GHz To 18 GHz, SMA



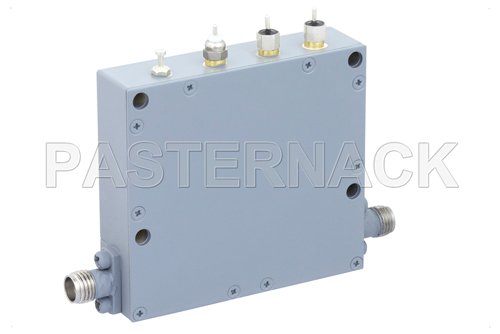

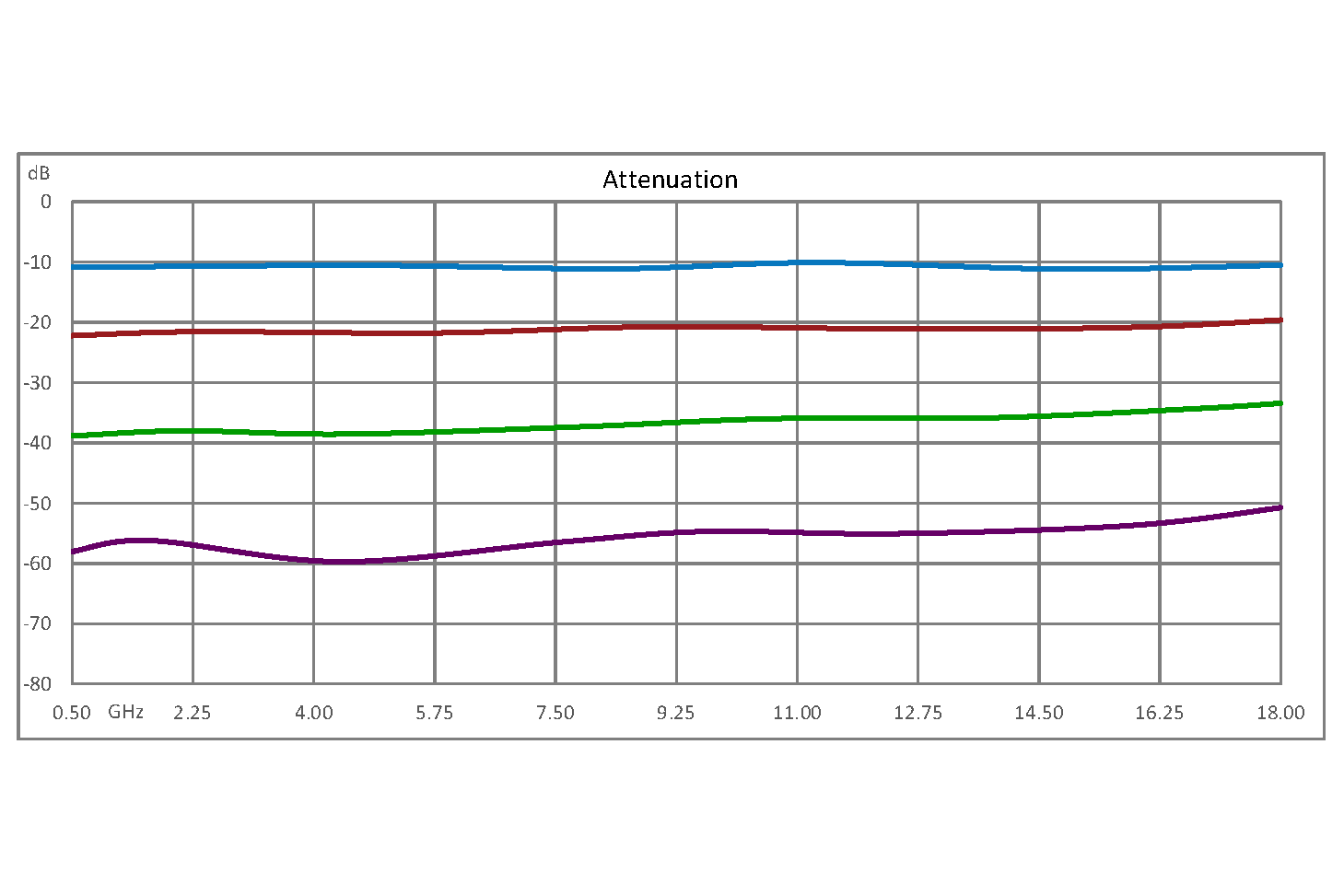

0 to 60 dB Voltage Variable Attenuator, PIN Diode, 500 MHz To 18 GHz, Rated To 0.1 Watts, SMA   PE70A2900

0.5 to 18

0 to 60

3.5

+20

3

0 to +6

+ 12

SMA Female*/
RFI Pins

EAR99

  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 500 MHz To 18 GHz, Rated To 0.1 Watts, SMA
  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 500 MHz To 18 GHz, Rated To 0.1 Watts, SMA
  • descr0 to 60 dB Voltage Variable Attenuator, PIN Diode, 500 MHz To 18 GHz, Rated To 0.1 Watts, SMA



   * Field Replaceable Connectors

Voltage Variable Attenuator Series

Our portfolio of voltage variable attenuators includes models covering octave broadband frequencies from 400 MHz to 18 GHz while boasting low insertion loss and wide dynamic range. Moreover, these voltage variable attenuator (VVA) modules display excellent VSWR over all attenuation levels. CW input power is rated up to +23 dBm. Each variable attenuator unit is designed into rugged coaxial packages to meet MIL-STD-202 environmental conditions.

In most communications systems, the RF components used (transmitters, receivers, mixers, multipliers, attenuators, amplifiers, VCO’s, phase locked loops, etc.) may require specific power levels to run optimally. These power levels may differ from one component to the next in a system network and may require the attenuation level to be finely adjusted to account for changes in received signal levels or to optimally match the input power into a sensitive circuit. Pasternack’s new PIN diode-based voltage variable attenuators (VVAs) provide accurate control and broadband flatness where the output level can be adjusted continuously by varying an analog voltage on the input control line. These VVA’s are ideally suited for use with variable gain amplifiers, power level control, feed-forward amplifiers, and automatic level control (ALC) circuits.
