Part No.


Frequency
Range
(GHz)

Power, Max
Input (watts)

Phase Shift
Range

Insertion Loss,
Max (dB)

Waveguide
Plating

Flange
Type

Waveguide
Size

Waveguide
Material

  • Phase shifters available in seven models to cover frequency ranges from 18 GHz to 110 GHz (WR-42 to WR-10 waveguide sizes)
  • Waveguide phase shifters have a continuously variable range from 0 to 180 degrees
  • 1 dB maximum insertion loss on phase shifter series
  • UG flange style per military standard
  • Micrometer allows precise and repeatable phase settings.

All ready for same-day shipping!

Click below for more phase shifter details

Waveguide Phase Shifters – K to W Bands


Part No.

Frequency
Range
(GHz)

Phase Shift
Range

Insertion Loss,
Max (dB)

Power, Max
Input (watts)

Waveguide
Size

Waveguide
Material

Waveguide
Plating

Flange
Type

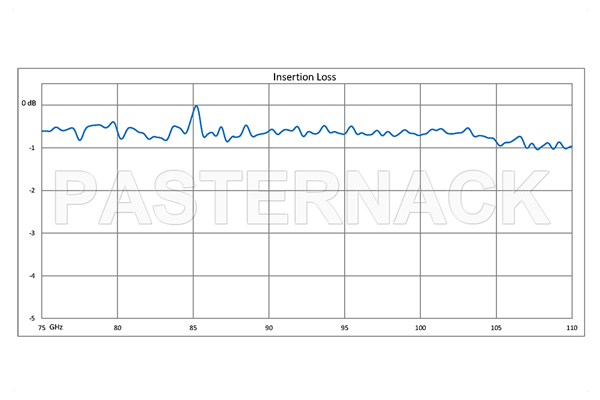

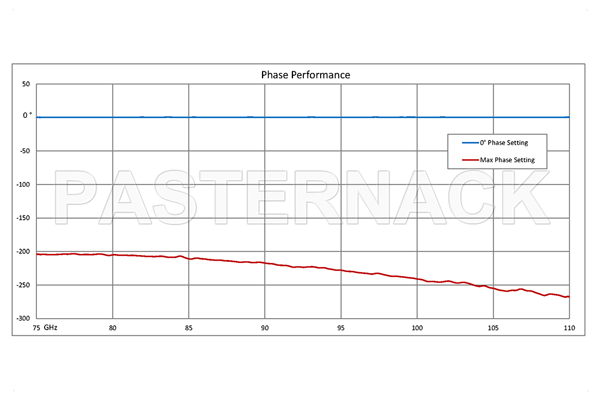

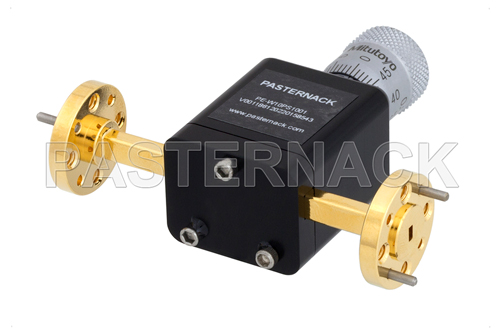

0 to 180 Degree WR-10 Waveguide Phase Shifter, From 75 GHz to 110 GHz, With a UG-387/U-Mod Round Cover Flange   PE-W10PS1001

75 to 110

0 to 180°

1

0.6

WR-10

Brass

Gold

UG-387/U-Mod Round Cover

  • descr0 to 180 Degree WR-10 Waveguide Phase Shifter, From 75 GHz to 110 GHz, With a UG-387/U-Mod Round Cover Flange
  • 0 to 180 Degree WR-10 Waveguide Phase Shifter, From 75 GHz to 110 GHz, With a UG-387/U-Mod Round Cover Flange0 to 180 Degree WR-10 Waveguide Phase Shifter, From 75 GHz to 110 GHz, With a UG-387/U-Mod Round Cover Flange
  • descr0 to 180 Degree WR-10 Waveguide Phase Shifter, From 75 GHz to 110 GHz, With a UG-387/U-Mod Round Cover Flange
  • descr0 to 180 Degree WR-10 Waveguide Phase Shifter, From 75 GHz to 110 GHz, With a UG-387/U-Mod Round Cover Flange

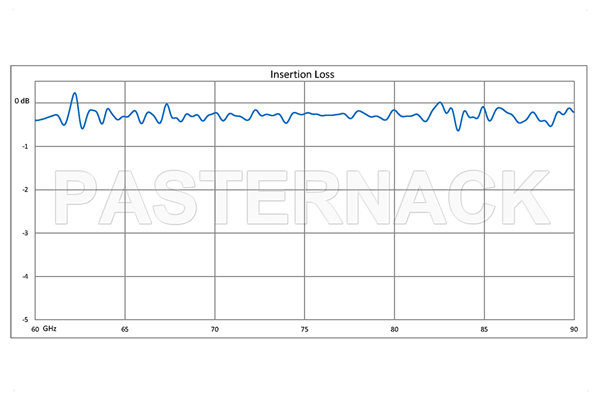

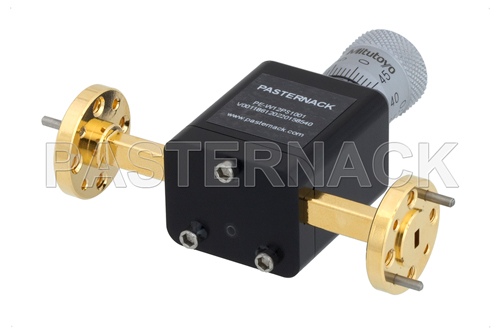

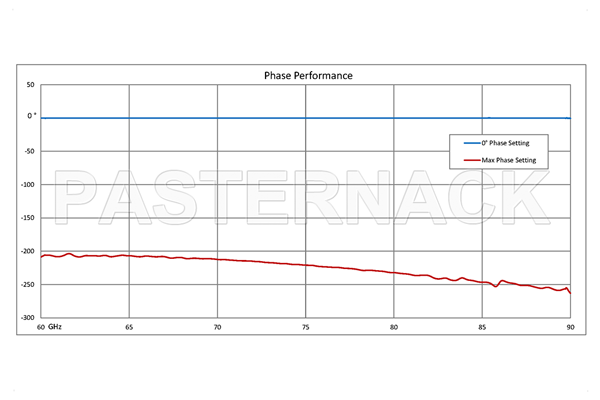

0 to 180 Degree WR-12 Waveguide Phase Shifter, From 60 GHz to 90 GHz, With a UG-387/U Round Cover Flange   PE-W12PS1001

60 to 90

0 to 180°

1

0.7

WR-12

Brass

Gold

UG-387/U Round Cover

  • descr0 to 180 Degree WR-12 Waveguide Phase Shifter, From 60 GHz to 90 GHz, With a UG-387/U Round Cover Flange
  • 0 to 180 Degree WR-12 Waveguide Phase Shifter, From 60 GHz to 90 GHz, With a UG-387/U Round Cover Flange0 to 180 Degree WR-12 Waveguide Phase Shifter, From 60 GHz to 90 GHz, With a UG-387/U Round Cover Flange
  • descr0 to 180 Degree WR-12 Waveguide Phase Shifter, From 60 GHz to 90 GHz, With a UG-387/U Round Cover Flange
  • descr0 to 180 Degree WR-12 Waveguide Phase Shifter, From 60 GHz to 90 GHz, With a UG-387/U Round Cover Flange

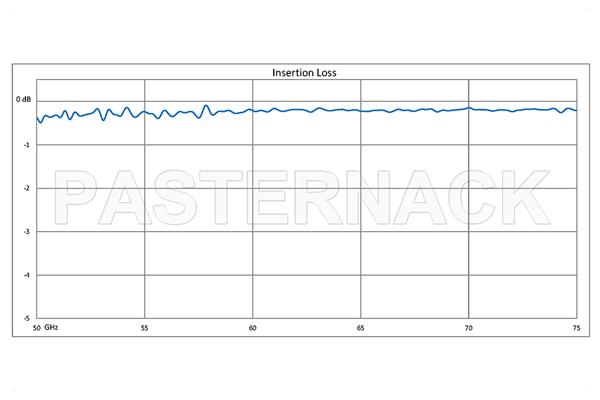

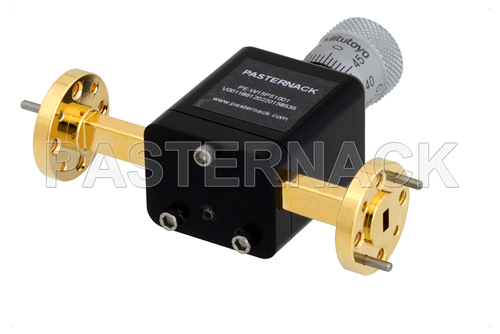

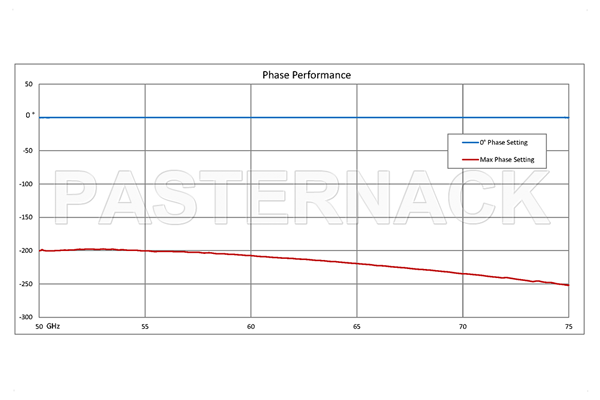

0 to 180 Degree WR-15 Waveguide Phase Shifter, From 50 GHz to 75 GHz, With a UG-385/U Round Cover Flange   PE-W15PS1001

50 to 75

0 to 180°

1

0.8

WR-15

Brass

Gold

UG-385/U Round Cover

  • descr0 to 180 Degree WR-15 Waveguide Phase Shifter, From 50 GHz to 75 GHz, With a UG-385/U Round Cover Flange
  • 0 to 180 Degree WR-15 Waveguide Phase Shifter, From 50 GHz to 75 GHz, With a UG-385/U Round Cover Flange0 to 180 Degree WR-15 Waveguide Phase Shifter, From 50 GHz to 75 GHz, With a UG-385/U Round Cover Flange
  • descr0 to 180 Degree WR-15 Waveguide Phase Shifter, From 50 GHz to 75 GHz, With a UG-385/U Round Cover Flange
  • descr0 to 180 Degree WR-15 Waveguide Phase Shifter, From 50 GHz to 75 GHz, With a UG-385/U Round Cover Flange

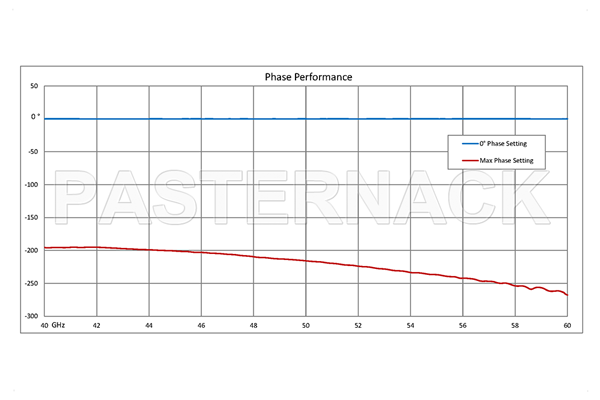

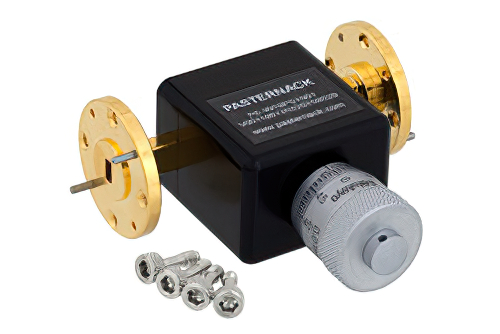

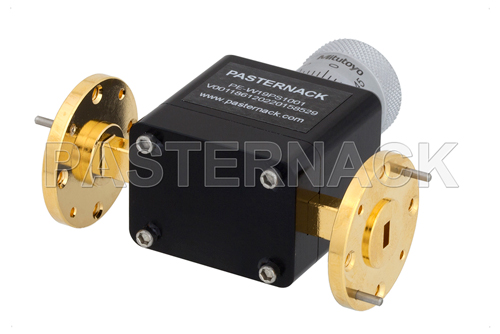

0 to 180 Degree WR-19 Waveguide Phase Shifter, From 40 GHz to 60 GHz, With a UG-383/U-Mod Round Cover Flange   PE-W19PS1001

40 to 60

0 to 180°

1

1

WR-19

Brass

Gold

UG-383/U-Mod Round Cover

  • descr0 to 180 Degree WR-19 Waveguide Phase Shifter, From 40 GHz to 60 GHz, With a UG-383/U-Mod Round Cover Flange
  • 0 to 180 Degree WR-19 Waveguide Phase Shifter, From 40 GHz to 60 GHz, With a UG-383/U-Mod Round Cover Flange0 to 180 Degree WR-19 Waveguide Phase Shifter, From 40 GHz to 60 GHz, With a UG-383/U-Mod Round Cover Flange
  • descr0 to 180 Degree WR-19 Waveguide Phase Shifter, From 40 GHz to 60 GHz, With a UG-383/U-Mod Round Cover Flange
  • descr0 to 180 Degree WR-19 Waveguide Phase Shifter, From 40 GHz to 60 GHz, With a UG-383/U-Mod Round Cover Flange

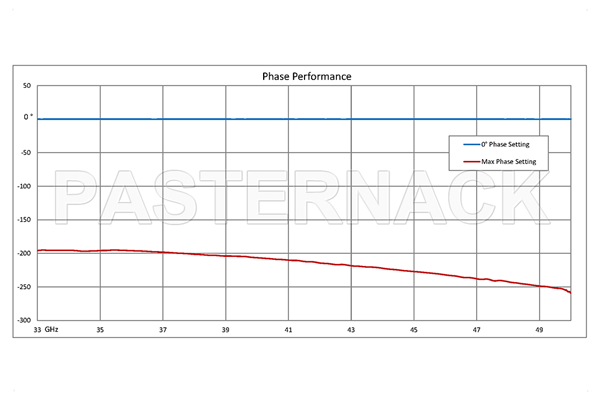

0 to 180 Degree WR-22 Waveguide Phase Shifter, From 33 GHz to 50 GHz, With a UG-383/U Round Cover Flange   PE-W22PS1001

33 to 50

0 to 180°

1

1

WR-22

Brass

Gold

UG-383/U Round Cover

  • descr0 to 180 Degree WR-22 Waveguide Phase Shifter, From 33 GHz to 50 GHz, With a UG-383/U Round Cover Flange
  • 0 to 180 Degree WR-22 Waveguide Phase Shifter, From 33 GHz to 50 GHz, With a UG-383/U Round Cover Flange0 to 180 Degree WR-22 Waveguide Phase Shifter, From 33 GHz to 50 GHz, With a UG-383/U Round Cover Flange
  • descr0 to 180 Degree WR-22 Waveguide Phase Shifter, From 33 GHz to 50 GHz, With a UG-383/U Round Cover Flange
  • descr0 to 180 Degree WR-22 Waveguide Phase Shifter, From 33 GHz to 50 GHz, With a UG-383/U Round Cover Flange

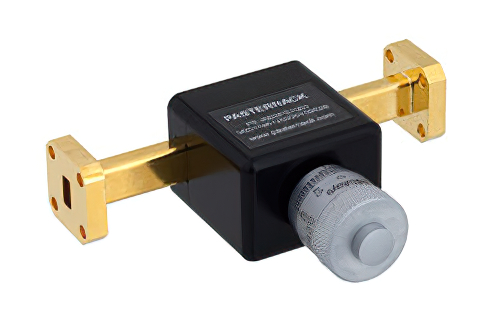

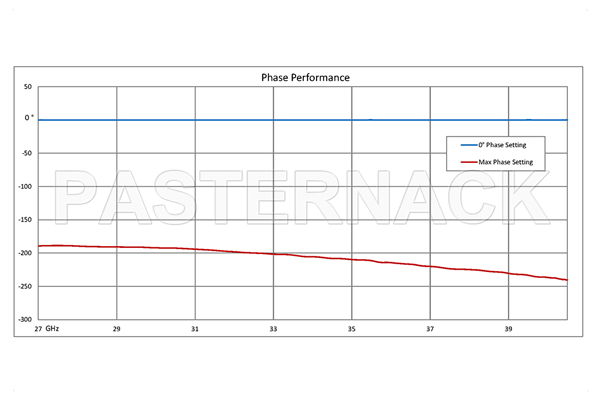

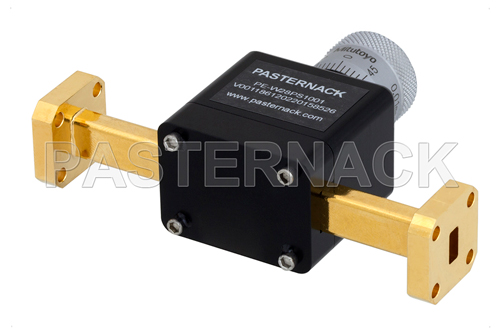

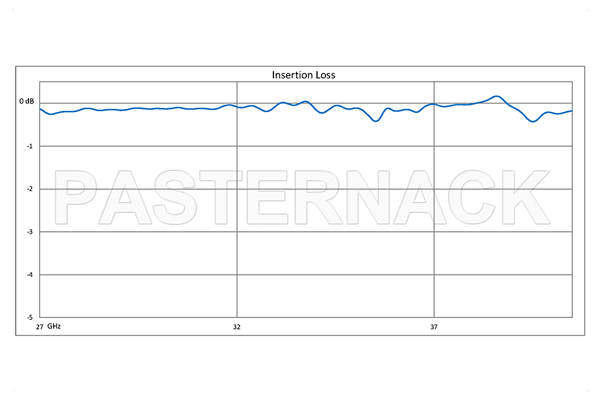

0 to 180 Degree WR-28 Waveguide Phase Shifter, From 26.5 GHz to 40 GHz, With a UG-599/U Flange   PE-W28PS1001

26.5 to 40

0 to 180°

1

1

WR-28

Brass

Gold

UG-599/U Square Cover

  • descr0 to 180 Degree WR-28 Waveguide Phase Shifter, From 26.5 GHz to 40 GHz, With a UG-599/U Flange
  • 0 to 180 Degree WR-28 Waveguide Phase Shifter, From 26.5 GHz to 40 GHz, With a UG-599/U Flange0 to 180 Degree WR-28 Waveguide Phase Shifter, From 26.5 GHz to 40 GHz, With a UG-599/U Flange
  • descr0 to 180 Degree WR-28 Waveguide Phase Shifter, From 26.5 GHz to 40 GHz, With a UG-599/U Flange
  • descr0 to 180 Degree WR-28 Waveguide Phase Shifter, From 26.5 GHz to 40 GHz, With a UG-599/U Flange

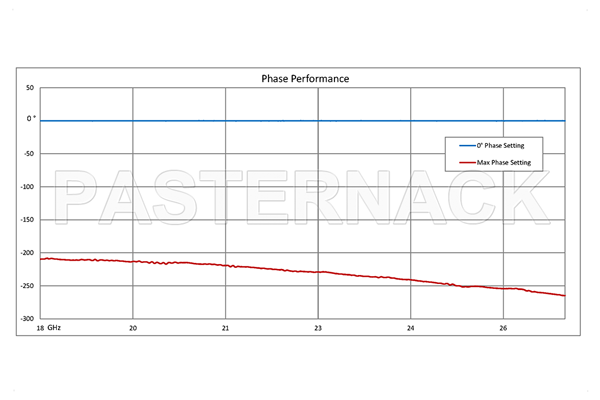

0 to 180 Degree WR-42 Waveguide Phase Shifter, From 18 GHz to 26.5 GHz, With a UG-595/U Flange   PE-W42PS1001

18 to 26.5

0 to 180°

1

1.5

WR-42

Brass

Gold

UG-595/U Square Cover

  • descr0 to 180 Degree WR-42 Waveguide Phase Shifter, From 18 GHz to 26.5 GHz, With a UG-595/U Flange
  • 0 to 180 Degree WR-42 Waveguide Phase Shifter, From 18 GHz to 26.5 GHz, With a UG-595/U Flange0 to 180 Degree WR-42 Waveguide Phase Shifter, From 18 GHz to 26.5 GHz, With a UG-595/U Flange
  • descr0 to 180 Degree WR-42 Waveguide Phase Shifter, From 18 GHz to 26.5 GHz, With a UG-595/U Flange
  • descr0 to 180 Degree WR-42 Waveguide Phase Shifter, From 18 GHz to 26.5 GHz, With a UG-595/U Flange



Waveguide Phase Shifter Series – K to W Bands

Pasternack’s waveguide phase shifter series operates in the frequency range of 18 GHz to 110 GHz. These waveguide phase shifter components function in 7 waveguide bands from K to W band. They provide phase shift range from 0 to 180 degrees and 1 dB maximum insertion loss.

These phase shifters for waveguide are constructed of gold-plated brass waveguide material and feature UG flange-style per military standard. The phase shifter micrometer allows for precision and repeatable phase settings. They are ideally suited for aerospace, defense, industrial, telecom, instrumentation and medical industries.

Pasternack’s waveguide phase shifters are available in sizes ranging from WR-42 to WR-10. Typical waveguide phase shifter applications include instrumentation, test benches, product development and characterization. As with all over 40,000 RF, microwave and millimeter wave components, these Pasternack waveguide phase shifters are in-stock and ship same-day.
