Short Open Load Thru (SOLT) Portable 4-in-1 Calibration Kits

  • Lightweight Portable 4-in-1 Package
  • Precision 3.5mm Connectors
  • Gold Plated Short Open Load Thru
  • Supports 26.5 GHz SOLT Calibration
  • Calibration Coefficients on Data Sheet



SOLT Portable 4-in-1 3.5mm Calibration Kits

are in stock and ship same-day

▼ Click on the links below for more details

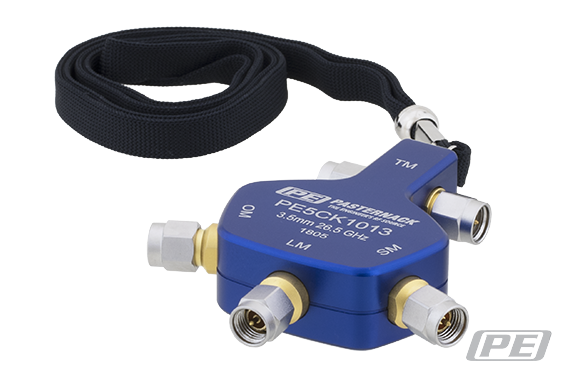

3.5mm Male Short Open Load Thru (SOLT) Analyzer Calibration Kit, portable 4-in-1, Operating from DC to 26.5 GHz
3.5mm Male Short Open Load Thru (SOLT) Analyzer Calibration Kit, portable 4-in-1, Operating from DC to 26.5 GHz
3.5mm Female Short Open Load Thru (SOLT) Analyzer Calibration Kit, portable 4-in-1, Operating from DC to 26.5 GHz
3.5mm Female Short Open Load Thru (SOLT) Analyzer Calibration Kit, portable 4-in-1, Operating from DC to 26.5 GHz

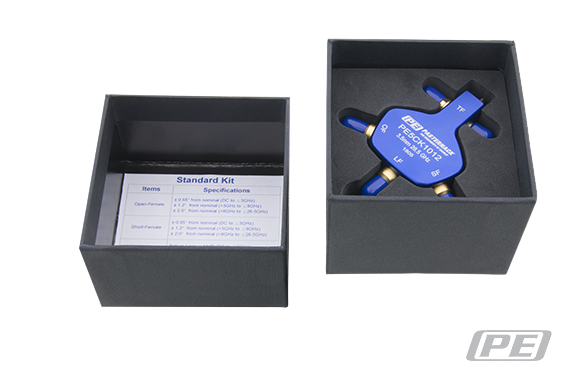

Short Open Load Thru (SOLT) Portable 4-in-1
Calibration Kits from Pasternack

Pasternack’s portable calibration kits consist of two models, both with a compact, lightweight, 4-in-1 design package. These short-open-load-through (SOLT) calibration kits have a 26.5 GHz calibration capability, feature precision 3.5mm connectors, gold plated short-open-load-thru and include a handy lanyard.

These SOLT calibration kits have an impedance level of 50 Ohms nominal. They also have a phase deviation of +/-2 degrees maximum and return loss of 30 dB minimum. They are ideal for telecommunications, military electronics, automotive, medical, aerospace and consumer electronics industries.

These SOLT calibration kits are available off-the-shelf and can be shipped immediately.
