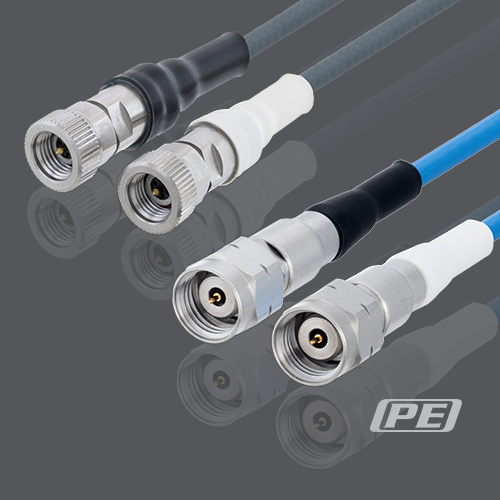

Skew Matched Cable Pairs

Handheld RF Analyzer Rugged Phase Stable Cable Assemblies from Pasternack
  • Delay match as low as 1 ps
  • Excellent VSWR of 1.4:1
  • 100% tested up to 40 or 67 GHz
  • Extremely flexible
  • Polarity indicators on cable ends

Skew Matched Cable Pairs are in stock

and ready for same-day shipping!

40 GHz Skew Matched Cable Pairs

2.92mm Male to 2.92mm Male Skew Matched Pair Cable 12 Inch Length Using PE-125LLS Coax
2.92mm Male to 2.92mm Male Skew Matched Pair Cable 12 Inch Length Using PE-125LLS Coax
2.92mm Male to 2.92mm Male Skew Matched Pair Cable 24 Inch Length Using PE-125LLS Coax
2.92mm Male to 2.92mm Male Skew Matched Pair Cable 24 Inch Length Using PE-125LLS Coax
2.92mm Male to 2.92mm Male Skew Matched Pair Cable 48 Inch Length Using PE-125LLS Coax
2.92mm Male to 2.92mm Male Skew Matched Pair Cable 48 Inch Length Using PE-125LLS Coax

67 GHz Skew Matched Cable Pairs

1.85mm Male to 1.85mm Male Skew Matched Pair Cable 12 Inch Length Using PE-P106LL Coax
1.85mm Male to 1.85mm Male Skew Matched Pair Cable 12 Inch Length Using PE-P106LL Coax
1.85mm Male to 1.85mm Male Skew Matched Pair Cable 24 Inch Length Using PE-P106LL Coax
1.85mm Male to 1.85mm Male Skew Matched Pair Cable 24 Inch Length Using PE-P106LL Coax
1.85mm Male to 1.85mm Male Skew Matched Pair Cable 36 Inch Length Using PE-P106LL Coax
1.85mm Male to 1.85mm Male Skew Matched Pair Cable 36 Inch Length Using PE-P106LL Coax
1.85mm Male to 1.85mm Male Skew Matched Pair Cable 48 Inch Length Using PE-P106LL Coax
1.85mm Male to 1.85mm Male Skew Matched Pair Cable 48 Inch Length Using PE-P106LL Coax

Skew Matched Cable Pairs from Pasternack

Pasternack’s skew matched cables consist of seven models that have 1 or 2 ps delay match and are extremely flexible. These skew matched cables deliver excellent VSWR of 1.4:1 and are 100% tested for skew match. They also include polarity indicators and restraint bands to keep themselves paired up.

These delay matched cables have a frequency range of DC to 67 GHz, covering two channels with 50 Ohms nominal impedance. They are made of micro porous PTFE cable dielectric and feature double- or triple-shielded outer conductors, 1.85mm or 2.92mm male connectors and finger-grip coupling nuts.

Skew matched cables are ideal for semiconductor test, networking and supercomputing applications where skew match is important.

Pasternack’s skew matched cable pairs are in stock and ready for immediate shipment with no minimum order quantity.

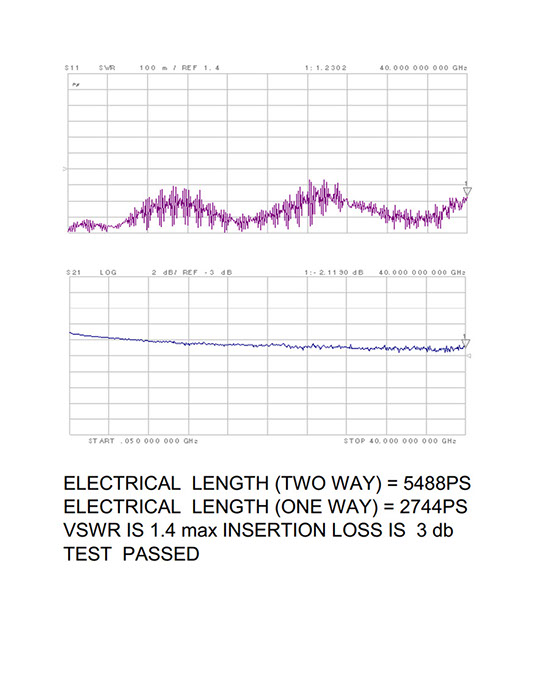

Typical Performance
