Panel Antenna Operates From 5.15 GHz to 5.85 GHz With a Nominal 23 dBi Gain SMA Male Input Connector

Product ID: PE51053
Panel Antenna Operates From 5.15 GHz to 5.85 GHz With a Nominal 23 dBi Gain SMA Male Input Connector

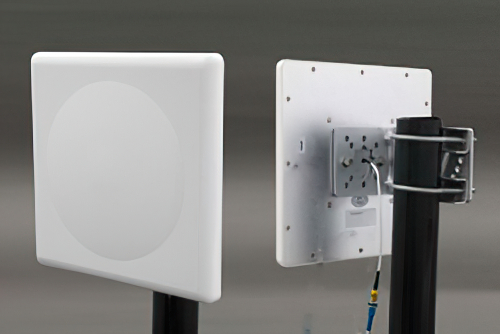

Image Views:  Panel Antenna Operates From 5.15 GHz to 5.85 GHz With a Nominal 23 dBi Gain SMA Male Input Connector high resolution
Zoom


Click for:PE51053 Datasheet
DISCONTINUED PRODUCT
Search for alternative
Antennas.

Key Specifications (Click on Data Sheet Above for Additional Details).
Antenna TypePanel
PolarizationVertical or Horizontal
Minimum Frequency5.15 GHz
Maximum Frequency5.85 GHz
Connector SeriesSMA
Connector GenderMale
Impedance50 Ohm
Nominal Gain23 dB
Maximum Input VSWR1.5:1


Panel Antenna Operates From 5.15 GHz to 5.85 GHz With a Nominal 23 dBi Gain SMA Male Input Connector

Panel antenna PE51053 from Pasternack (sometimes known as a patch antenna) is part of our extensive in-stock RF directional antenna selection. This single band panel / patch antenna has a frequency range of 5.15 GHz to 5.85 GHz and a 23 nominal dBi gain. Our patch panel antenna uses SMA male connector and is rated for 100 Watts input.

PE51053 radio frequency panel / patch antenna is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our panel aerial can ship worldwide the same day of the purchase as with our other available RF parts.
