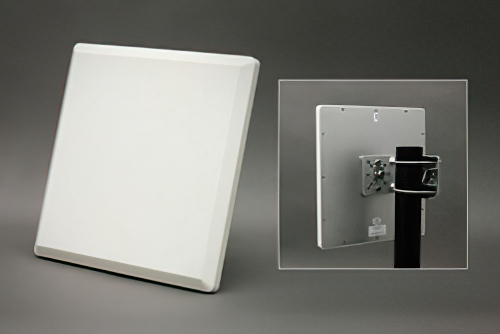

Panel Antenna Operates From 3.4 GHz to 3.6 GHz With a Nominal 18 dBi Gain N Female Input Connector

Product ID: PE51047
Panel Antenna Operates From 3.4 GHz to 3.6 GHz With a Nominal 18 dBi Gain N Female Input Connector

Image Views:  Panel Antenna Operates From 3.4 GHz to 3.6 GHz With a Nominal 18 dBi Gain N Female Input Connector high resolution
Zoom


Click for:PE51047 Datasheet
DISCONTINUED PRODUCT
Remaining Quantity Available: 1
Pricing Table
QUANTITYPRICE
1-24$86.80
25-49$80.72
50-99$74.65
100-249$69.44
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Antenna TypePanel
Minimum Frequency3.4 GHz
Maximum Frequency3.6 GHz
Connector SeriesN
Connector GenderFemale
Impedance50 Ohm
Nominal Gain18 dB
Maximum Input VSWR1.5:1


Panel Antenna Operates From 3.4 GHz to 3.6 GHz With a Nominal 18 dBi Gain N Female Input Connector

Panel antenna PE51047 from Pasternack (sometimes known as a patch antenna) is part of our extensive in-stock RF directional antenna selection. This single band panel / patch antenna has a frequency range of 3.4 GHz to 3.6 GHz and a 18 nominal dBi gain. Our patch panel antenna uses N female connector and is rated for 100 Watts input.

PE51047 radio frequency panel / patch antenna is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our panel aerial can ship worldwide the same day of the purchase as with our other available RF parts.
