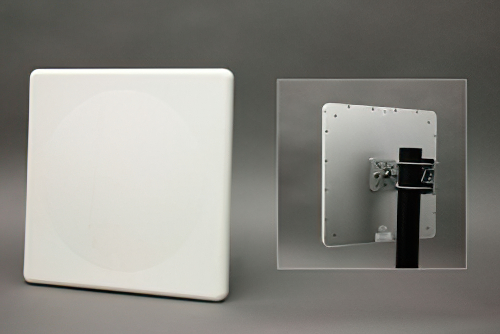

Panel Antenna Operates From 2.5 GHz to 2.7 GHz With a Nominal 14 dBi Gain N Female Input Connector

Product ID: PE51043
Panel Antenna Operates From 2.5 GHz to 2.7 GHz With a Nominal 14 dBi Gain N Female Input Connector

Image Views:  Panel Antenna Operates From 2.5 GHz to 2.7 GHz With a Nominal 14 dBi Gain N Female Input Connector high resolution
Zoom


Click for:PE51043 Datasheet
DISCONTINUED PRODUCT
Search for alternative
Antennas.

Key Specifications (Click on Data Sheet Above for Additional Details).
Antenna TypePanel
PolarizationVertical or Horizontal
Minimum Frequency2.5 GHz
Maximum Frequency2.7 GHz
Connector SeriesN
Connector GenderFemale
Impedance50 Ohm
Nominal Gain14 dB
Maximum Input VSWR1.5:1


Panel Antenna Operates From 2.5 GHz to 2.7 GHz With a Nominal 14 dBi Gain N Female Input Connector

Panel antenna PE51043 from Pasternack (sometimes known as a patch antenna) is part of our extensive in-stock RF directional antenna selection. This single band panel / patch antenna has a frequency range of 2.5 GHz to 2.7 GHz and a 14 nominal dBi gain. Our patch panel antenna uses N female connector and is rated for 100 Watts input.

PE51043 radio frequency panel / patch antenna is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our panel aerial can ship worldwide the same day of the purchase as with our other available RF parts.
