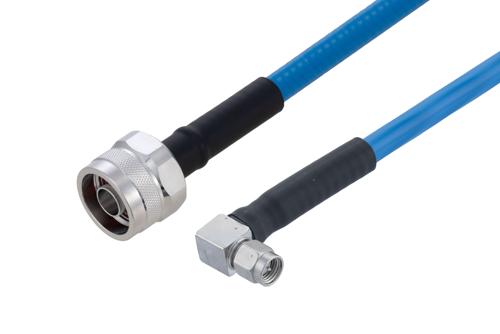

Radio frequency assembly plenum N male to SMA male right angle low PIM cable using SPP-250-LLPL coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack low PIM (Passive Intermodulation, also called Intermod for short) coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The plenum N male to SMA male right angle low PIM cable using SPP-250-LLPL coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom type N to SMA cable assembly orders will ship the same business day as well.
Pasternack RF coax low PIM cable assembly is built with a type N cable connection on one end and a right angle SMA cable connection on the other. Our low PIM type N to right angle SMA cable assembly has a male gender on end 1 and a male on end 2. PE3C7912 can also be known as a low PIM type N plug to right angle SMA plug cable assembly and will be shipped the same day as it is purchased. This corrugated RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PTFE dielectric type.
The minimum bend radius for this cable is 1.25 inches, allowing for a single bend without damaging the cable. Our PE3C7912 RF cable has a FEP jacket of 0.280-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 155 degrees C. The corrugated RF cable has a between series connection. This cable assembly has a typical propagation velocity of 76% and a minimum RF shielding of 100 dB. Our type N male to right angle SMA male cable has a maximum VSWR of 1.4:1.
Type N plug to SMA plug cable assembly PE3C7912 is built with SPP-250-LLPL which is a corrugated coax type. The Pasternack low passive intermodulation corrugated type N cable assembly is manufactured with type N to right angle SMA cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a solder/solder attachment method and a brass body with tri-metal plating. Additional dimensions, specifications and CAD drawings for this low PIM RF cable are available on our downloadable PDF datasheet. PE3C7912 can also be used in the other direction and will be a right angle SMA male to type N male cable assembly if the opposite connectivity is required.
Low PIM type N plug to SMA right angle plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality type N to SMA cable assembly for quick shipment worldwide. Variations of type N and SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal type N to SMA low PIM RF cable assembly as per your requirements.
