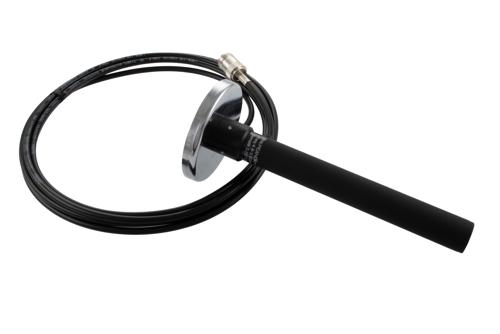

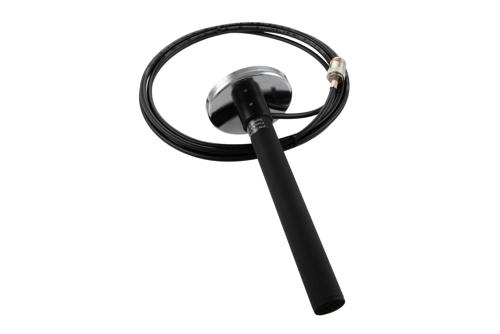

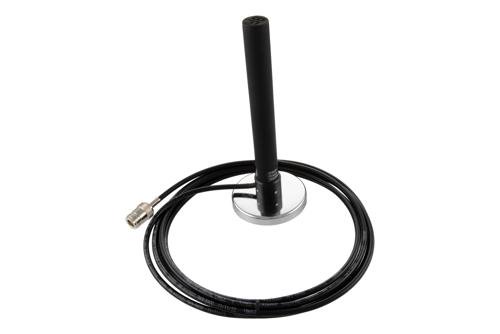

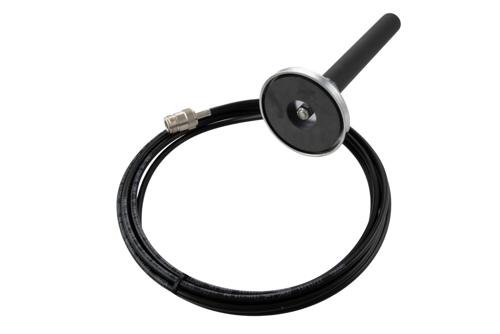

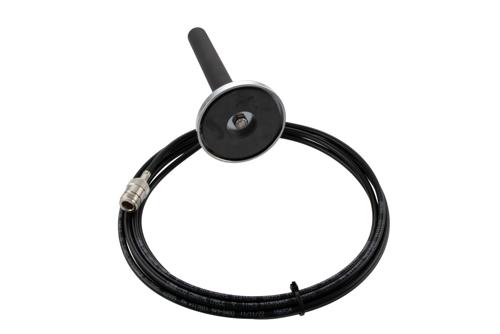

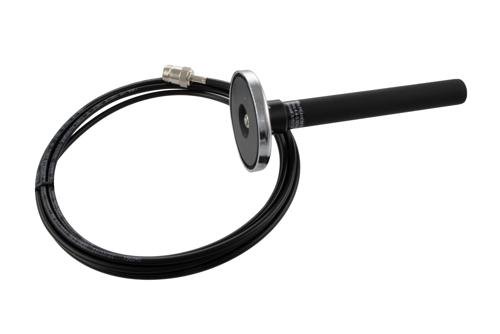

The PEANOM1179 from Pasternack is a single-band portable antenna that we offer with global same-business-day shipping. This portable antenna’s lightweight and small design makes it simple to transport and set up in different locations. Our RHCP polarized C-band antenna has a maximum input VSWR of 2:1. This omnidirectional antenna comes with an impedance of 50 Ohms and a maximum input power of 20 Watts.
Pasternack’s PEANOM1179 single-band antenna can operate at frequencies ranging from 4.4 to 5.9 GHz. This antenna has a black G10 fiberglass radome of 0.812-inch diameter, which provides a protective cover without affecting the performance of the antenna system. This portable antenna has a type N female connector and a 120-inch long LMR195 cable. Our RHCP polarized antenna features a magnetic mount base.
The portable C-band antenna has a vertical beam width of 163 degrees and a horizontal beam width of 360 degrees at 3 dB. This RHCP polarized antenna has an overall length of 7.15 inches, a width of 2.875 inches, and a weight of 0.1 lbs. The single-band antenna is used for Military Vehicles, Ground-to-Air Communication, Unmanned Vehicles/Vessels, Autonomous Vehicles, Video Relay, Rugged, Harsh and Hostile Environments applications. Our antenna has a maximum gain of 3.75 dBic. Additional dimensions and specifications for this omnidirectional antenna are on our downloadable PDF datasheet.
Pasternack has one of the largest in-stock selections of portable antennas for international and domestic orders. Make your online purchase right now to take advantage of our same business day shipping with no MOQs (minimum order quantities). For further information on similar products, our expert technical support and knowledgeable sales team can help you get the ideal single-band omnidirectional antenna for your requirements.
