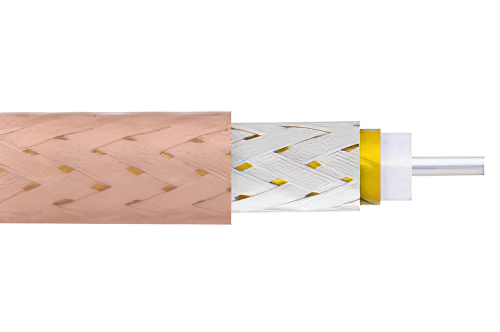

Low Loss Flexible PE-P195 Coax Cable Triple Shielded with Tan FEP Jacket

Name: Low Loss Flexible PE-P195 Coax Cable Triple Shielded with Tan FEP Jacket
Brand: Pasternack
SKU: PE-P195

Product ID: PE-P195

Pricing

FEET	Price
1-99	$12.73
100-499	$12.09
500-999	$11.46
1000-2499	$10.95
2500+	Call Us

* All Prices are in US Dollars and do not include duties

CALL FOR QUOTE

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Generic Name	RG142 Type
Flex Type	Flexible
Impedance	50 Ohm
Dielectric Type	PTFE
Velocity of Propagation	70 %
Jacket Diameter	0.195 in
Jacket Material	FEP
No. of Shields	3
Attenuation at 1 Ghz.	12.5 dB
Power, Max at 1 Ghz.	650 Watts
Frequency, Max	22 GHz
Max Operating Temperature	200 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, Repeated	1 in
Coax Type	Coax

Description

Low Loss Flexible PE-P195 Coax Cable Triple Shielded with Tan FEP Jacket

PE-P195 part number from Pasternack is a RG142 Type coax cable that is flexible. Pasternack PE-P195 flexible coax cable is 50 Ohm and has a PTFE dielectric. Our PE-P195 coax is constructed with a 0.195 jacket made of FEP. PE-P195 coax has a shield count of 3 and the maximum frequency for this Pasternack cable is 22 GHz. PE-P195 coax cable has an attenuation at 1 GHz of 12.5 dB and a maximum power of 650 watts at 1 GHz.

Pasternack RG142 Type coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-P195 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-P195 or other coax can be built and shipped same day as well.
