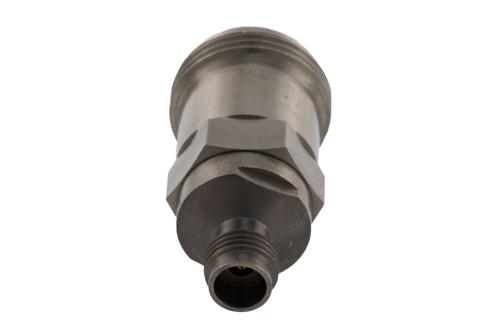

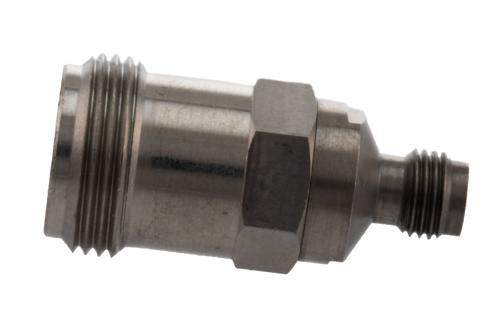

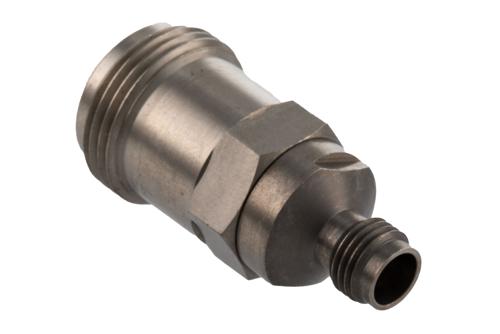

The precision 2.4mm to type N adapter PE5165 is part of our full line of available RF, microwave, and millimeter wave components from Pasternack. Our radio frequency adapter comes with a 50 Ohm impedance and a maximum VSWR of 1.15:1. This RF adapter has a female to female gender configuration, which provides easier connections in tighter spaces. Our 2.4mm to type N adapter is precision manufactured to RF component industry specifications and has a maximum frequency of 18 GHz. This precision RF adapter has a dielectric withstanding voltage of 500 Vrms.
This 2.4mm female to type N female adapter is one of the many RF components that ship the same business day as they are ordered. The PE5165 female 2.4mm to female type N adapter has a straight body. This Pasternack 2.4mm to type N coax adapter is an in-line RF adapter in a precision design. Our RF adapter is often used to enable connections between two connector types that would otherwise not mate. Our adapter has a maximum insertion loss of 0.13 dB. This precision RF adapter has a 1.264-inch length, 0.512-inch width, and 0.05 lbs weight.
The PE5165 adapter from Pasternack is made from a passivated stainless steel connector body and has a beryllium copper center contact. Our 2.4mm female to type N female radio frequency adapter can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. This precision RF adapter has an operating temperature range of -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.
Pasternack has one of the largest in-stock selections of 2.4mm to type N radio frequency precision adapters for international and domestic orders, including custom cable assemblies. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality 18 GHz RF adapter that meets your requirements.
