Low Power WR-62 Waveguide Terminations

Check out our new RF calculators & conversion tools...

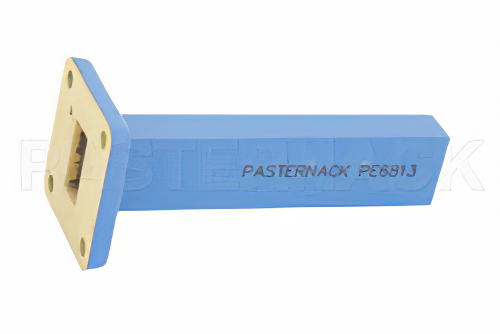

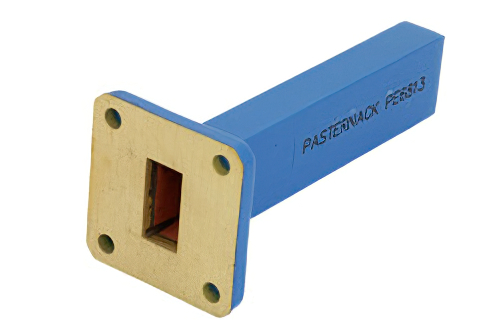

1.5 Watts Low Power Precision WR-62 Waveguide Load 12.4 GHz to 18 GHz

Product ID: PE6813
1.5 Watts Low Power Precision WR-62 Waveguide Load 12.4 GHz to 18 GHz


Image Views:  1.5 Watts Low Power Precision WR-62 Waveguide Load 12.4 GHz to 18 GHz high resolution
Zoomalternate image
View 2


Click for:PE6813 Datasheet
Click for:PE6813 RoHS Cert
Click for:PE6813 REACH Cert
DISCONTINUED PRODUCT
Replaced By: PE6201

Key Specifications (Click on Data Sheet Above for Additional Details).
Maximum Power1.5 Watt
Waveguide SizeWR-62
Minimum Frequency12.4 GHz
Maximum Frequency18 GHz
Impedance50 Ohm


1.5 Watts Low Power Precision WR-62 Waveguide Load 12.4 GHz to 18 GHz

PE6813 1.5 Watts low power waveguide load (also known as waveguide termination) has a WR-62 input. This Pasternack WR-62 waveguide load / termination is rated for a minimum frequency of 12.4 GHz and a maximum frequency of 18 GHz. Our WR-62 waveguide terminator has a maximum input power of 1.5 Watts.

WR-62 waveguide load / termination PE6813 has an average maximum VSWR of 1.05:1. This Pasternack WR-62 precision low power waveguide termination / load is part of over 40,000 in-stock RF, microwave and millimeter wave components. Our WR-62 load ships same day as purchased worldwide as with our other RF parts.
