Low Power WR-51 Waveguide Terminations

Check out our new RF calculators & conversion tools...

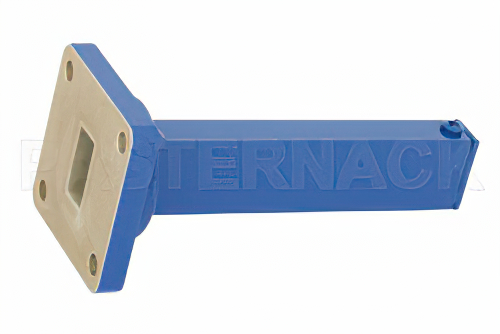

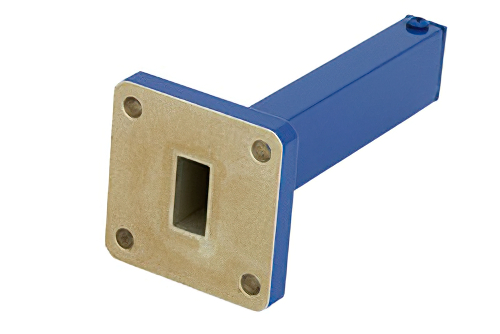

1 Watt Low Power Precision WR-51 Waveguide Load 15 GHz to 22 GHz

Product ID: PE6812
1 Watt Low Power Precision WR-51 Waveguide Load 15 GHz to 22 GHz


Image Views:  1 Watt Low Power Precision WR-51 Waveguide Load 15 GHz to 22 GHz high resolution
Zoomalternate image
View 2


Click for:PE6812 Datasheet
Click for:PE6812 RoHS Cert
Click for:PE6812 REACH Cert
Available Quantity: 11
Pricing Table
QUANTITYPRICE
1-4$955.07
5-9$907.32
10-24$859.56
25+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Maximum Power1 Watt
Waveguide SizeWR-51
Minimum Frequency15 GHz
Maximum Frequency22 GHz
Impedance50 Ohm


1 Watt Low Power Precision WR-51 Waveguide Load 15 GHz to 22 GHz

PE6812 1 Watts low power waveguide load (also known as waveguide termination) has a WR-51 input. This Pasternack WR-51 waveguide load / termination is rated for a minimum frequency of 15 GHz and a maximum frequency of 22 GHz. Our WR-51 waveguide terminator has a maximum input power of 1 Watts.

WR-51 waveguide load / termination PE6812 has an average maximum VSWR of 1.05:1. This Pasternack WR-51 precision low power waveguide termination / load is part of over 40,000 in-stock RF, microwave and millimeter wave components. Our WR-51 load ships same day as purchased worldwide as with our other RF parts.
