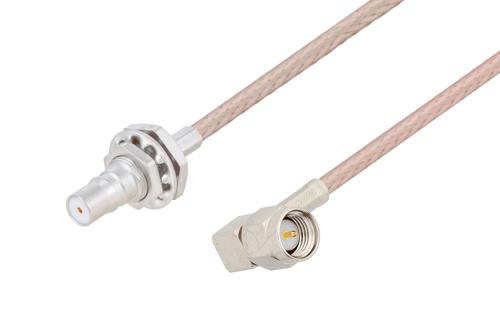

Radio frequency assembly QMA female bulkhead to SMA male right angle cable using RG316-DS coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The QMA female bulkhead to SMA male right angle cable using RG316-DS coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom QMA to SMA cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a QMA bulkhead cable connection on one end and a right angle SMA cable connection on the other. Our QMA to right angle SMA cable assembly has a female gender on end 1 and a male on end 2. PE39549 can also be known as a QMA jack to right angle SMA plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1.57-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE39549 RF cable has a FEP jacket of 0.114-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -40 to 85 degrees C. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 69.5% and a minimum RF shielding of 85 dB. Our bulkhead QMA female to right angle SMA male cable has a maximum VSWR of 1.4:1.
QMA jack to SMA plug cable assembly PE39549 is built with RG316-DS which is a flexible coax type. The Pasternack flexible QMA cable assembly is manufactured with QMA to right angle SMA cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a brass body. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE39549 can also be used in the other direction and will be a right angle SMA male to QMA female bulkhead cable assembly if the opposite connectivity is required.
QMA jack bulkhead to SMA right angle plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality QMA to SMA cable assembly for quick shipment worldwide. Variations of QMA and SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal QMA to SMA RF cable assembly as per your requirements.
