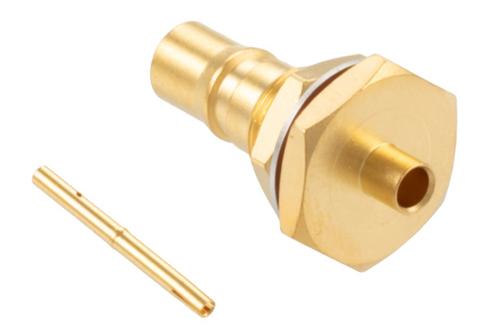

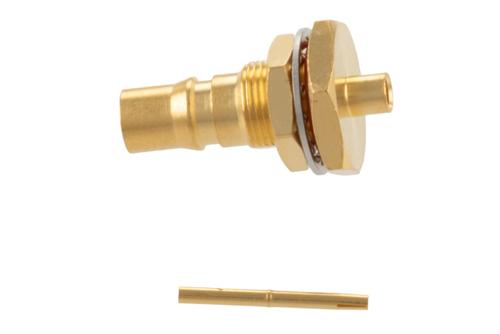

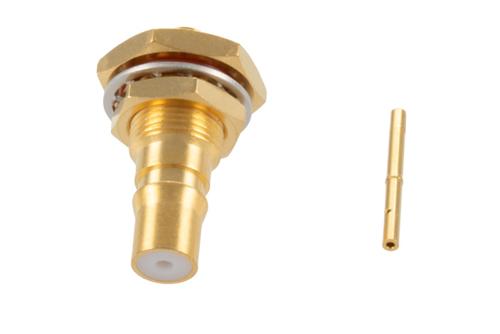

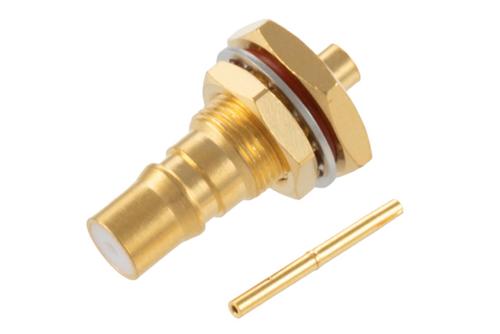

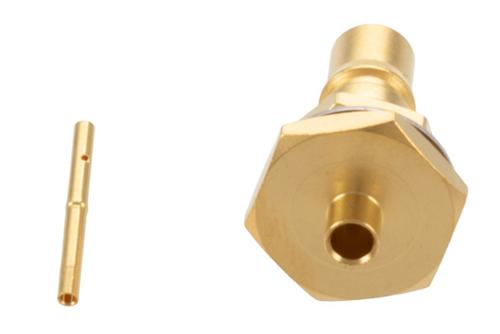

PE517803 QMA female bulkhead coaxial connector has an interface type of QMA female, which is compatible with PE-SR405AL, PE-SR405FL, PE-SR405FLJ, RG405 and RG405 tinned cables, and has an impedance of 50 Ohms. Pasternack’s QMA female bulkhead connector uses solder as an attachment method. Our female QMA coaxial connector provides a maximum frequency of 6 GHz. This QMA female RF connector is stocked to be readily available for same business day shipment and can also be designed onto custom cable configurations using our online cable creator.
The Pasternack QMA female bulkhead coaxial connector has a PTFE dielectric type and a VSWR of 1.15:1. Pasternack’s QMA coaxial connector has a brass body with gold over nickel over copper plating. Our PE517803 QMA connector uses a gold over nickel over copper-plated beryllium copper contact. The Pasternack RF connector has a maximum inner and outer conductor resistance of 3 mOhms and 2.5 mOhms respectively. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings above.
The radio frequency connector made from brass material has a contact life of 100 cycles or more. The PE517803 QMA bulkhead connector operates at a temperature range of -40 to 165 deg C. Our female QMA coaxial RF connector has a maximum insertion loss of 0.122 dB. This QMA connector has a gold over nickel over copper inner contact plating. The Pasternack QMA female connector has a maximum operating voltage of 480 Vrms and a dielectric withstanding voltage of 1,000 Vrms. This coaxial RF connector comes with a minimum insulation resistance of 5,000 MOhms. Our QMA female connector has a length of 0.787 inches, a width of 0.437 inches, and a weight of 0.16 lbs.
This Pasternack female QMA bulkhead connector will ship the same business day as purchased. Our bulkhead QMA female coaxial connector is part of over one million RF, microwave, and millimeter wave components in stock for local, domestic, and international shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.
