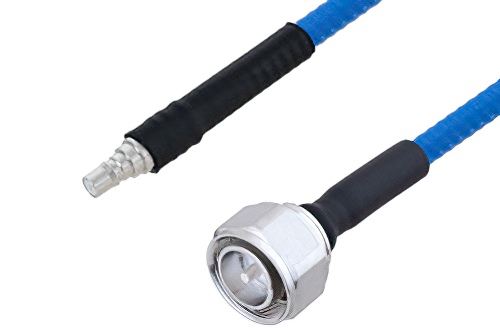

QMA Female to 4.3-10 Male Cable Using SPP-250-LLPL Coax

Product ID: PE3C5859

Length

Standard Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Product discontinued.

Search for alternative Cable Assemblies or contact us.

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	4.3-10
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50 Ohm
Connector Series 2	QMA
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50 Ohm
RF Cable Part Number	SPP-250-LLPL
RF Cable Type	SPP-250-LLPL
RF Cable Impedance	50 Ohm

Description

Click on the below images to access KitBOM product pages:


PE45418	SPP-250-LLPL	PE45429	KitBOM Datasheet

4.3-10 Male to QMA Female Cable Using SPP-250-LLPL Coax, LF Solder

PE3C5859 is a 4.3-10 male to QMA female cable using SPP-250-LLPL coax. This Pasternack 4.3-10 male to QMA female cable assembly uses a 50 Ohm 4.3-10 for connector 1 and a 50 Ohm QMA for connector 2.

Our male 4.3-10 to female QMA cable assembly uses a corrugated cable type that is 50 Ohm. Pasternack PE3C5859 4.3-10 male to QMA female cable assembly is constructed with SPP-250-LLPL coax.
