QMA Male Straight Connectors

Check out our new RF calculators & conversion tools...

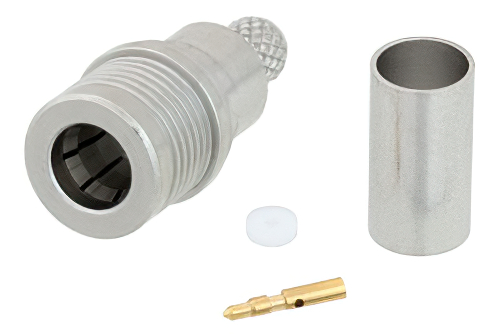

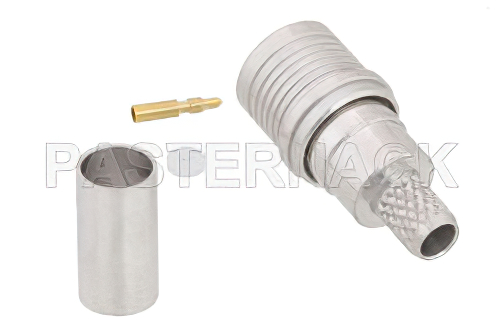

QMA Male Snap-On Connector Crimp/Solder Attachment for LMR-200, PE-C200

Product ID: PE45224
QMA Male Snap-On Connector Crimp/Solder Attachment for LMR-200, PE-C200


Image Views:  QMA Male Snap-On Connector Crimp/Solder Attachment for LMR-200, PE-C200 high resolution
Zoomalternate image
View 2


Click for:PE45224 Datasheet
Click for:PE45224 RoHS Cert
Available Quantity: 214
Pricing Table
QUANTITYPRICE
1-24$10.84
25-49$10.30
50-99$9.76
100-249$9.32
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesQMA
Connector GenderMale
Impedance50 Ohm
Body StyleStraight
Attachment MethodCrimp/Solder
Mount MethodNone
Minimum FrequencyDC
Maximum Frequency6 GHz


QMA Male Snap-On Connector Crimp/Solder Attachment for LMR-200, PE-C200

PE45224 QMA male coaxial snap-on connector has an interface type of LMR-200, PE-C200 and a 50 Ohm impedance. Pasternack QMA male connector uses shield/contact crimp/solder as an attachment method. Our male QMA coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.

The Pasternack QMA male coaxial snap-on connector has a ptfe dielectric type and a VSWR of 1.5. The Pasternack QMA coaxial connector has a brass body with tri-metal plating. Our PE45224 QMA connector uses brass contact. This QMA male coaxial snap-on RF connector is REACH compliant.

This Pasternack male QMA connector will ship the same day as purchased. Our QMA male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom QMA connector cable assemblies that will ship the same day as well.

*LMR™ is a Trademark of Times Microwave
