QN Male to QN Male Right Angle Cable Using RG223 Coax

Product ID: PE38488
QN Male to QN Male Right Angle Cable Using RG223 Coax

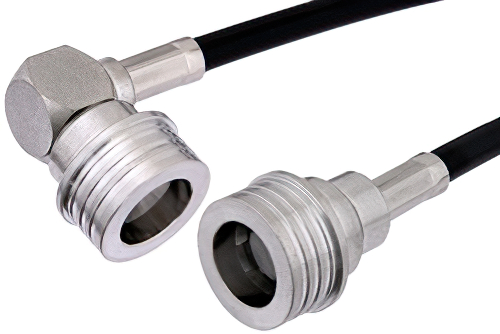

Image Views:  QN Male to QN Male Right Angle Cable Using RG223 Coax high resolution
Zoom


Click for:PE38488 Datasheet
Click for:PE38488 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.120 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1QN
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2QN
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG223/U
RF Cable TypeRG223
RF Cable Impedance50


QN Male to QN Male Right Angle Cable Using RG223 Coax

PE38488 is a QN male to QN male right angle cable using RG223 coax. This Pasternack QN male to QN male right angle cable assembly uses a 50 Ohm QN for connector 1 and a 50 Ohm QN for connector 2. QN to QN right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male QN to male QN right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE38488 QN male to QN male right angle cable assembly is constructed with RG223 coax.
