Pasternack’s PE3W20676 BNC jack to BNC male RF cable assembly using RG223 coax is part of one of the largest selections of same-day ship coaxial cables for RF, microwave, and millimeter wave interconnect solutions. These coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The BNC jack to BNC male cable, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom BNC cable assembly orders will ship the same business day as well.

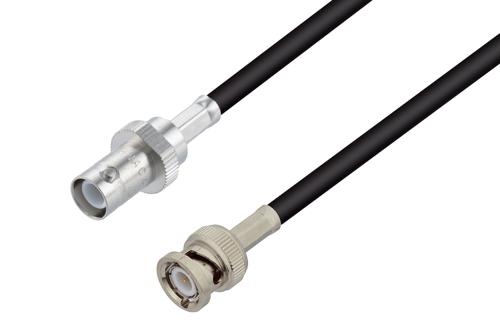

Pasternack RF coax cable assembly is built with a reverse polarity BNC cable connection on one end and a BNC cable connection on the other. Our reverse polarity BNC to BNC cable assembly has a jack gender on end 1 and a male on end 2. PE3W20676 can also be known as a reverse polarity BNC female to BNC plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable’s inner conducting material and PE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W20676 RF cable has a pvc jacket of 0.209-inch diameter. The flexible RF cable has an in-series connection.
This PE3W20676 reverse polarity BNC female to BNC plug cable assembly is built with RG223, which is a flexible coax type. The Pasternack flexible BNC cable assembly is manufactured with BNC to BNC cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications, and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3W20676 can also be used in the other direction and will be a BNC male to reverse polarity BNC jack cable assembly if the opposite connectivity is required.
This BNC reverse polarity female to BNC plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality BNC to BNC cable assembly for quick shipment worldwide. Variations of BNC cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High-quality custom RF cable assembly products for microwave and millimeter wave radio transmitters, receivers, antenna jumpers, component interconnections, RF test and measurement labs, military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment, and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal BNC to BNC RF cable assembly as per your requirements.
