Pasternack’s PE3W20410 low loss TNC jack bulkhead to right angle SMA plug RF cable assembly using LMR-195-UF coax is part of one of the largest selections of same-day ship coaxial cables for RF, microwave, and millimeter wave interconnect solutions. These coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, defense/military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The TNC jack to SMA plug cable, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom TNC to SMA cable assembly orders will ship the same business day as well.

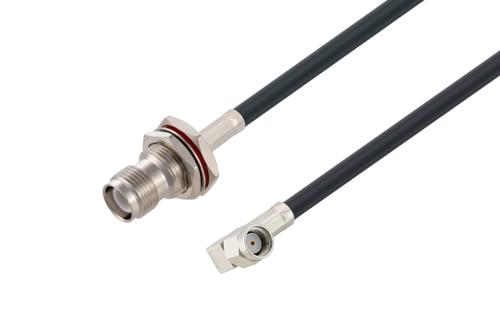

Pasternack RF coax low loss cable assembly is built with a reverse polarity TNC bulkhead cable connection on one end and a right angle reverse polarity SMA cable connection on the other. Our reverse polarity TNC to reverse polarity SMA cable assembly has a jack gender on end 1 and a plug on end 2. PE3W20410 can also be known as a low loss reverse polarity TNC female to right angle reverse polarity SMA male cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable’s inner conducting material and Foam PE dielectric type.
This cable assembly employs durable and flexible materials, and with a 2-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3W20410 RF cable has a tpe jacket of 0.195-inch diameter. The flexible RF cable has a between series connection. This cable assembly has a typical propagation velocity of 74% and a minimum RF shielding of 90 dB.
This PE3W20410 reverse polarity TNC female to reverse polarity SMA male cable assembly is built with LMR-195-UF, which is a flexible coax type. The Pasternack flexible TNC cable assembly is manufactured with TNC to right angle SMA cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications, and CAD drawings for this low loss RF cable are available on our downloadable PDF datasheet. PE3W20410 can also be used in the other direction and will be a right angle reverse polarity SMA plug to reverse polarity TNC jack bulkhead cable assembly if the opposite connectivity is required.
This low loss TNC reverse polarity female bulkhead to SMA reverse polarity right angle male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality TNC to SMA cable assembly for quick shipment worldwide. Variations of TNC and SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High-quality custom RF cable assembly products for microwave and millimeter wave radio transmitters, receivers, antenna jumpers, component interconnections, RF test and measurement labs, military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment, and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal TNC to SMA low loss RF cable assembly as per your requirements.LMR® is a registered trademark of Times Microwave Systems.
