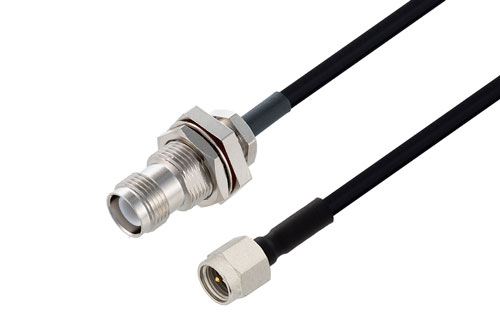

Reverse Polarity TNC Jack Bulkhead to SMA Male Cable Using PE-SR402FLJ Coax with HeatShrink
Product ID:
PE3W11930/HS
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.
Key Specifications
| Key Specifications. |
| Connector 1 Series | TNC |
| Connector 1 Gender | Jack |
| Connector 1 Polarity | Reverse Polarity |
| Connector Angle 1 | Straight |
| Connector Mount Method 1 | Bulkhead |
| Connector 1 Impedance | 50 Ohm |
| Connector 2 Series | SMA |
| Connector 2 Gender | Male |
| Connector 2 Polarity | Standard |
| Connector Angle 2 | Straight |
| Connector 2 Impedance | 50 Ohm |
| Connector 1 Body Material | Brass |
| Connector 1 Body Plating | Nickel |
| RF Cable Part Number | PE-SR402FLJ |
| RF Cable Type | PE-SR402FLJ |
| RF Cable Impedance | 50 Ohm |
Description
Reverse Polarity TNC Jack Bulkhead to SMA Male Cable Using PE-SR402FLJ Coax with HeatShrink
Radio frequency assembly reverse polarity TNC jack bulkhead to SMA male cable using PE-SR402FLJ coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, general use, etc. The Reverse polarity TNC jack bulkhead to SMA male cable using PE-SR402FLJ coax with heatshrink, TNC cable like our other Pasternack coaxial cable assemblies, will ship the same day and any custom TNC to SMA cable assembly orders will ship same day as well.
Pasternack RF coax cable assembly is built with reverse polarity TNC bulkhead cable connection on one end and SMA cable connection on the other. Our reverse polarity TNC to SMA cable assemblies have a jack gender on end 1 and male on end 2. PE3W11930/HS can also be known as a reverse polarity TNC female to SMA plug cable assembly and will be shipped same-day as it is purchased.
Reverse polarity TNC female to SMA plug cable assembly PE3W11930/HS is built with PE-SR402FLJ which is a formable coax type. The Pasternack formable reverse polarity TNC cable assembly is manufactured with TNC to SMA cable connectors, has a 50 Ohm impedance. RF specs on this reverse polarity TNC jack bulkhead to SMA male cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE3W11930/HS can also be used in the other direction and will be SMA male to reverse polarity TNC jack bulkhead cable assembly if the opposite connectivity is required.
TNC reverse polarity female bulkhead to SMA plug cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality TNC to SMA cable assembly for quick shipment worldwide. Variations of TNC cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this reverse polarity TNC jack bulkhead to SMA male cable using PE-SR402FLJ coax with heatshrink.
