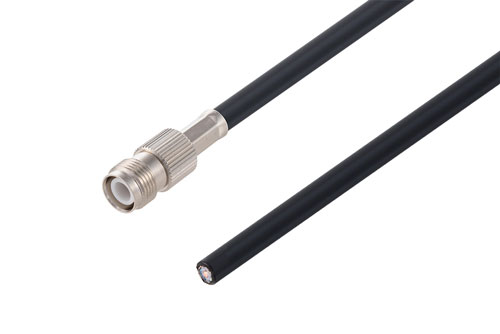

Reverse Polarity TNC Jack to Straight Cut Lead Low Loss Cable Using LMR-240 Coax

Product ID: PE3C6329

Length

Standard Length

Custom Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications.
Connector 1 Series	TNC
Connector 1 Gender	Female
Connector 1 Polarity	Reverse Polarity
Connector Angle 1	Straight
Connector 1 Impedance	50 Ohm
Connector 2 Series	Straight Cut Lead
Connector 2 Gender	Hermaphroditic
Connector 2 Polarity	Standard
Connector Angle 2	Straight
Connector 1 Body Material	Brass
Connector 1 Body Plating	Nickel
RF Cable Part Number	LMR-240
RF Cable Type	LMR-240
RF Cable Impedance	50 Ohm

Description

Reverse Polarity TNC Female to Straight Cut Lead Low Loss Cable Using LMR-240 Coax

Radio frequency assembly reverse polarity TNC female to straight cut lead low loss cable using LMR-240 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality such as laboratory RF test and measurement, rugged and designed for defense / military, telecom antenna tower component jumper connection, production environments, low loss, general use, etc. The Reverse polarity TNC female to straight cut lead low loss cable using LMR-240 coax, TNC cable like our other Pasternack coaxial cable assemblies, will ship the same day and any custom TNC to straight cut lead cable assembly orders will ship same day as well.

Pasternack RF coax low loss cable assembly is built with reverse polarity TNC cable connection on one end and straight cut lead cable connection on the other. Our low loss reverse polarity TNC to straight cut lead cable assemblies have a female gender on end 1 and sexless on end 2. PE3C6329 can also be known as a low loss reverse polarity TNC jack to straight cut lead sexless cable assembly and will be shipped same-day as it is purchased.

Reverse polarity TNC jack to straight cut lead sexless cable assembly PE3C6329 is built with LMR-240 which is a flexible coax type. The Pasternack flexible reverse polarity TNC cable assembly is manufactured with TNC to straight cut lead cable connectors, has a 50 Ohm impedance and is double shielded. RF specs on this reverse polarity TNC female to straight cut lead sexless cable are located on the specifications PDF datasheet on this page along with CAD drawing and dimensions. PE3C6329 can also be used in the other direction and will be straight cut lead sexless to reverse polarity TNC female cable assembly if the opposite connectivity is required.

Low loss TNC reverse polarity jack to straight cut lead sexless cable assembly is just one of more than 45,000 in-stock RF products available. Pasternack is where to buy a high quality TNC to straight cut lead cable assembly for quick shipment worldwide. Variations of TNC cable assemblies can also be built and will ship same-day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component inter-connection and more for RF test & measurement labs, rugged and MIL-STD designed military / defense, aerospace, telecom, low loss, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For all these reasons and more, Pasternack is one of the best websites where to find and buy quality RF cable assemblies like this reverse polarity TNC female to straight cut lead low loss cable using LMR-240 coax.
