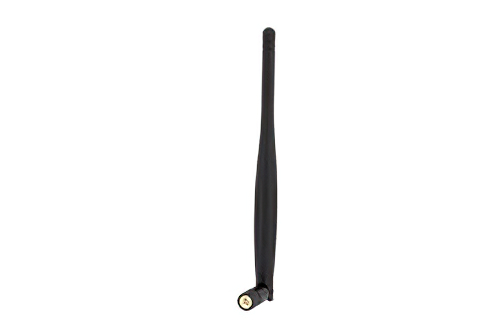

Rubber Duck Portable Antenna Operates From 2.3 GHz to 2.7 GHz With a Nominal 6.5 dBi Gain SMA Male Input Connector
Product ID:
PE51086
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details) . |
| Antenna Type | Portable |
| Polarization | Vertical |
| Minimum Frequency | 2.3 GHz |
| Maximum Frequency | 2.7 GHz |
| Connector Series | SMA |
| Connector Gender | Male |
| Impedance | 50 Ohm |
| Nominal Gain | 6.5 dB |
| Maximum Input VSWR | 2:1 |
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
