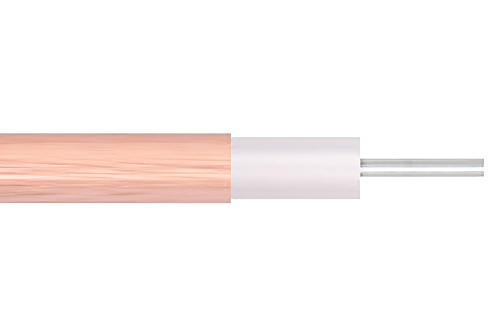

Semirigid Coax Cable 0.034 Diameter With Copper Outer Conductor
Product ID:
PE-034SR
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Generic Name | 034 Semi-rigid |
| Flex Type | Semi-Rigid |
| Impedance | 50 Ohm |
| Dielectric Type | PTFE |
| No. of Shields | 1 |
| Attenuation at 1 Ghz. | 60 dB |
| Power, Max at 1 Ghz. | 10 Watts |
| Frequency, Max | 40 GHz |
| Max Operating Temperature | 100 deg C |
| Center Conductor Type | Solid |
| Inner Conductor, Number of Strands | 1 |
| Minimum Bend Radius, Repeated | 0.5 in |
| Coax Type | Coax |
Description
Semirigid Coax Cable 0.034 Diameter With Copper Outer Conductor
PE-034SR part number from Pasternack is a 034 Semi-rigid coax cable that is semi-rigid. Pasternack PE-034SR semi-rigid coax cable is 50 Ohm and has a PTFE dielectric.PE-034SR coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 40 GHz. PE-034SR coax cable has an attenuation at 1 GHz of 60 dB and a maximum power of 10 watts at 1 GHz.
Pasternack 034 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-034SR cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-034SR or other coax can be built and shipped same day as well.
Tariff Surcharge
Section 301 USTR Import Tariff related to this product. This product may have a surcharge if the product is shipped to an address within the United States. This surcharge will be finalized after the Shipping Address information is entered on the Check Out page.
