086 Semi-rigid Coax Cable with Tinned Aluminum Outer Conductor

Product ID: PE-SR405AL

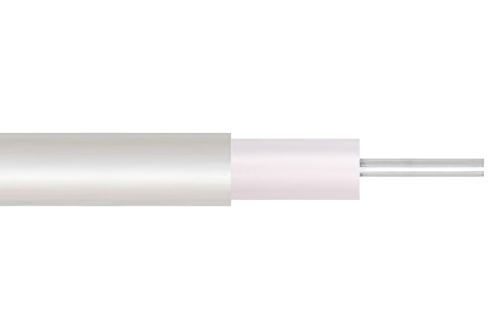

086 Semi-rigid Coax Cable with Tinned Aluminum Outer Conductor

Image Views:  086 Semi-rigid Coax Cable with Tinned Aluminum Outer Conductor high resolution
Zoom


Click for:PE-SR405AL Datasheet
Click for:PE-SR405AL RoHS Cert
Available Feet: 1,280
Pricing Table
FEETPRICE
1-99$8.89
100-499$8.45
500-999$8.00
1000-2499$7.65
2500+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Generic Name086 Semi-rigid
Flex TypeSemi-Rigid
Impedance50 Ohm
Dielectric TypePTFE
No. of Shields1
Attenuation at 1 Ghz.23 dB
Power, Max at 1 Ghz.130 Watts
Frequency, Max40 GHz
Max Operating Temperature125 deg C
Center Conductor TypeSolid
Inner Conductor, Number of Strands1
Minimum Bend Radius, One Time0.05 in
Coax TypeCoax


086 Semi-rigid Coax Cable with Tinned Aluminum Outer Conductor

PE-SR405AL part number from Pasternack is a 086 Semi-rigid coax cable that is semi-rigid. Pasternack PE-SR405AL semi-rigid coax cable is 50 Ohm and has a PTFE dielectric.PE-SR405AL coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 40 GHz. PE-SR405AL coax cable has an attenuation at 1 GHz of 23 dB and a maximum power of 130 watts at 1 GHz.

Pasternack 086 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-SR405AL cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-SR405AL or other coax can be built and shipped same day as well.
