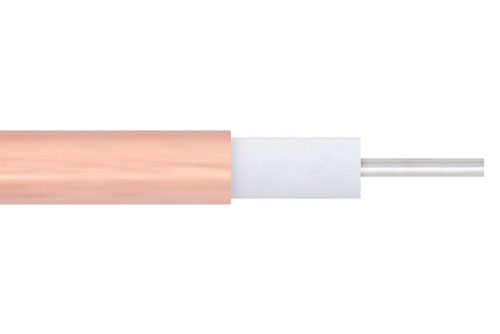

Semirigid Coax Cable 0.118 Diameter With Copper Outer Conductor

Product ID: PE-118SR-BULK

Pricing

Quantity (Feet)	Price
1-24	$74.99
25-49	$71.24
50-99	$67.49
100-249	$64.49
250+	Call Us

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

Buy

How many?

Available Quantity: 5

Same-Day Shipping!

Order in the next hours!

* All Prices are in US Dollars and do not include duties.

* Quantity selected indicates total length of bulk cable (i.e. inputing 10 indicates a 10 foot section), Contact us for alternate requirements.

* Contact us for different unit of measure(inches,meters, etc.) requirements.

View
Datasheet

Key Specifications

Key Specifications.
Generic Name	118 Semi-rigid
Flex Type	Semi-Rigid
Impedance	50 Ohm
Dielectric Type	PTFE (LD)
No. of Shields	1
Attenuation at 1 Ghz.	12.5 dB
Power, Max at 1 Ghz.	500 Watts
Frequency, Max	46 GHz
Max Operating Temperature	200 deg C
Center Conductor Type	Solid
Inner Conductor, Number of Strands	1
Minimum Bend Radius, One Time	0.4 in
Coax Type	Coax

Description

Semirigid Coax Cable 0.118 Diameter With Copper Outer Conductor

PE-118SR-BULK part number from Pasternack is a 118 Semi-rigid coax cable that is semi-rigid. Pasternack PE-118SR semi-rigid coax cable is 50 Ohm and has a PTFE (LD) dielectric. PE-118SR coax has a shield count of 1 and the maximum frequency for this Pasternack cable is 46 GHz. PE-118SR coax cable has an attenuation at 1 GHz of 12.5 dB and a maximum power of 500 watts at 1 GHz.

Pasternack 118 Semi-rigid coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-118SR cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-118SR or other coax can be built and shipped same day as well.
