SHV Jack Straight Connectors

Check out our new RF calculators & conversion tools...

SHV Jack Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400, .480 inch D Hole

Product ID: PE44080

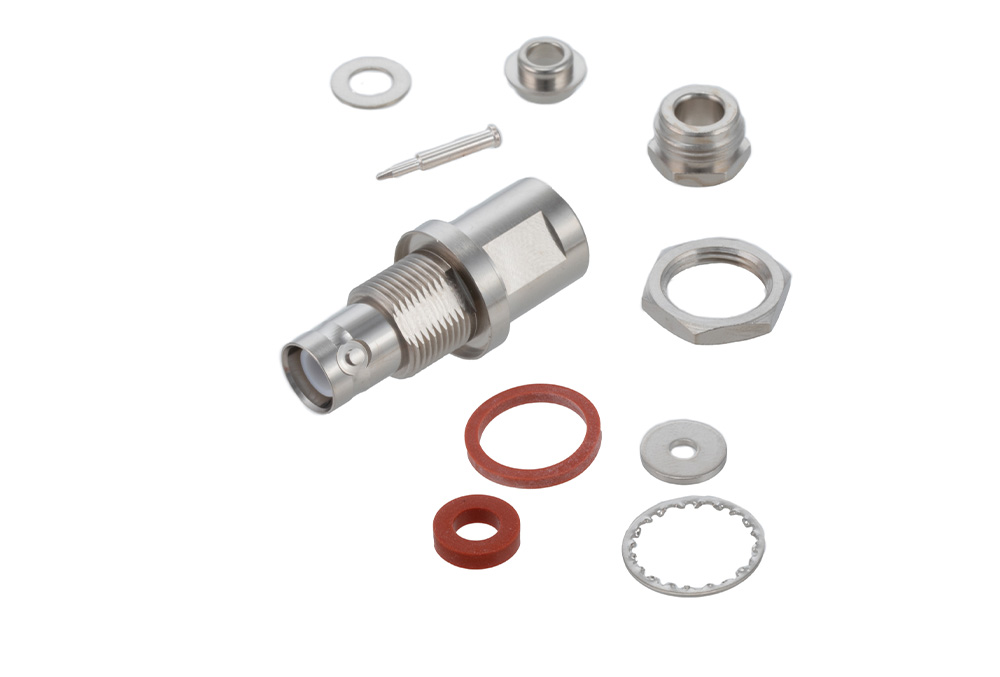

SHV Jack Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400, .480 inch D Hole


Image Views:  SHV Jack Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400, .480 inch D Hole high resolution
Zoomalternate image

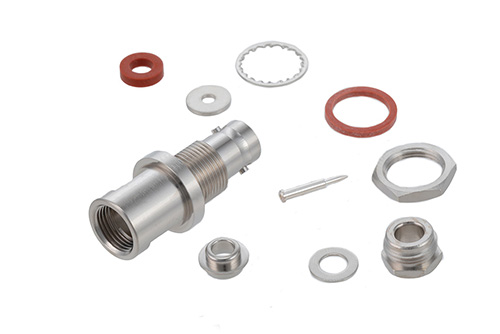

View 2


Click for:PE44080 Datasheet
Click for:PE44080 RoHS Cert
Click for:PE44080 REACH Cert
Available Quantity: 804
Pricing Table
QUANTITYPRICE
1-24$44.16
25-49$41.07
50-99$37.98
100-249$35.33
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
PolarityStandard
Connector SeriesSHV
Connector GenderJack
Impedance50 Ohm
Body StyleStraight
Attachment MethodClamp/Solder
Mount MethodBulkhead


SHV Jack Bulkhead Connector Clamp/Solder Attachment For RG58, RG55, RG141, RG142, RG223, RG400, .480 inch D Hole

PE44080 SHV jack bulkhead coaxial connector has an interface type of RG58, RG55, RG141, RG142, RG223, RG400 and a 50 Ohm impedance. Pasternack SHV jack bulkhead connector uses shield/contact clamp/solder as an attachment method.

The Pasternack SHV jack bulkhead coaxial connector has a ptfe dielectric type. The Pasternack SHV coaxial connector has a brass body with nickel plating. Our PE44080 SHV connector uses brass contact. This SHV jack bulkhead coaxial RF connector is RoHS and REACH compliant.

This Pasternack jack SHV bulkhead connector will ship the same day as purchased. Our bulkhead SHV jack connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. We also build custom SHV connector cable assemblies that will ship the same day as well.
