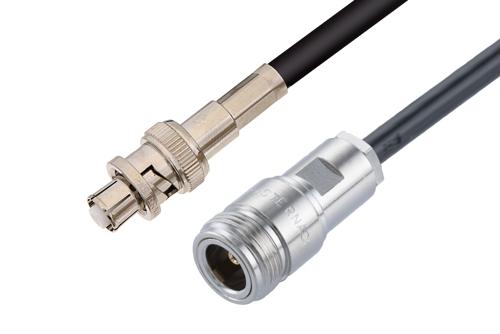

Radio frequency assembly SHV plug to N female cable using 75 Ohm RG59 coax, LF solder from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SHV plug to N female cable using 75 Ohm RG59 coax, LF solder, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SHV to type N cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a SHV cable connection on one end and a type N cable connection on the other. Our SHV to type N cable assembly has a plug gender on end 1 and a female on end 2. PE33433LF can also be known as a SHV male to type N jack cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PE dielectric type.
Our PE33433LF RF cable has a PVC (NC) jacket of 0.242-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -25 to 70 degrees C. The flexible RF cable has a between series connection. Our SHV plug to type N female cable has a maximum VSWR of 1.4:1.
SHV male to type N jack cable assembly PE33433LF is built with RG59 which is a flexible coax type. The Pasternack flexible SHV cable assembly is manufactured with SHV to type N cable connectors, has a 50 Ohm impedance, and is single shielded. One connector features the crimp/solder attachment method and a brass body with nickel plating, while the other has the clamp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE33433LF can also be used in the other direction and will be a type N female to SHV plug cable assembly if the opposite connectivity is required.
SHV male to type N jack cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SHV to type N cable assembly for quick shipment worldwide. Variations of SHV and type N cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SHV to type N RF cable assembly as per your requirements.
