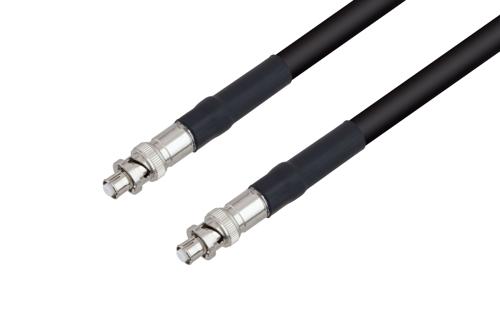

Radio frequency assembly SHV plug to SHV plug cable using RG214 coax with heatshrink from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SHV plug to SHV plug cable using RG214 coax with heatshrink, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SHV to SHV cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a SHV cable connection on one end and a SHV cable connection on the other. Our SHV to SHV cable assembly has a plug gender on end 1 and a plug on end 2. PE3117/HS can also be known as a SHV male to SHV male cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper as the cable's inner conducting material and PE dielectric type.
This cable assembly employs durable and flexible materials, and with a 1.6-inch bend radius, it can withstand repetitive movements, ensuring reliable performance over extended periods. Our PE3117/HS RF cable has a PVC jacket of 0.425-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -20 to 80 degrees C. The flexible RF cable has an in-series connection. Our SHV plug to SHV plug cable has a maximum VSWR of 1.4:1.
SHV male to SHV male cable assembly PE3117/HS is built with RG214 which is a flexible coax type. The Pasternack flexible SHV cable assembly is manufactured with SHV to SHV cable connectors, has a 50 Ohm impedance, and is double shielded. Both the connectors have a crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet.
SHV male to SHV male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SHV to SHV cable assembly for quick shipment worldwide. Variations of SHV cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SHV to SHV RF cable assembly as per your requirements.
