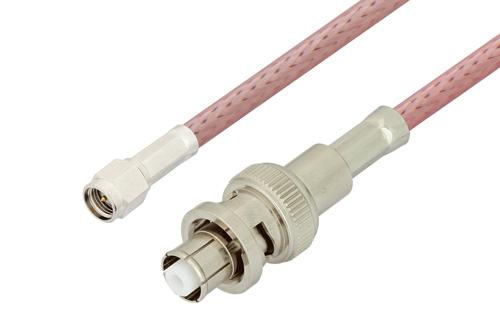

Radio frequency assembly SHV plug to SMA male cable using RG303 coax, LF solder from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The SHV plug to SMA male cable using RG303 coax, LF solder, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom SHV to SMA cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a SHV cable connection on one end and a SMA cable connection on the other. Our SHV to SMA cable assembly has a plug gender on end 1 and a male on end 2. PE3C1656LF can also be known as a SHV male to SMA plug cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
Our PE3C1656LF RF cable has a FEP jacket of 0.170-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 165 degrees C. The flexible RF cable has a between series connection. Our SHV plug to SMA male cable has a maximum VSWR of 1.4:1.
SHV male to SMA plug cable assembly PE3C1656LF is built with RG303 which is a flexible coax type. The Pasternack flexible SHV cable assembly is manufactured with SHV to SMA cable connectors, has a 50 Ohm impedance, and is single shielded. Both the connectors have a crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE3C1656LF can also be used in the other direction and will be a SMA male to SHV plug cable assembly if the opposite connectivity is required.
SHV male to SMA plug cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality SHV to SMA cable assembly for quick shipment worldwide. Variations of SHV and SMA cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal SHV to SMA RF cable assembly as per your requirements.
